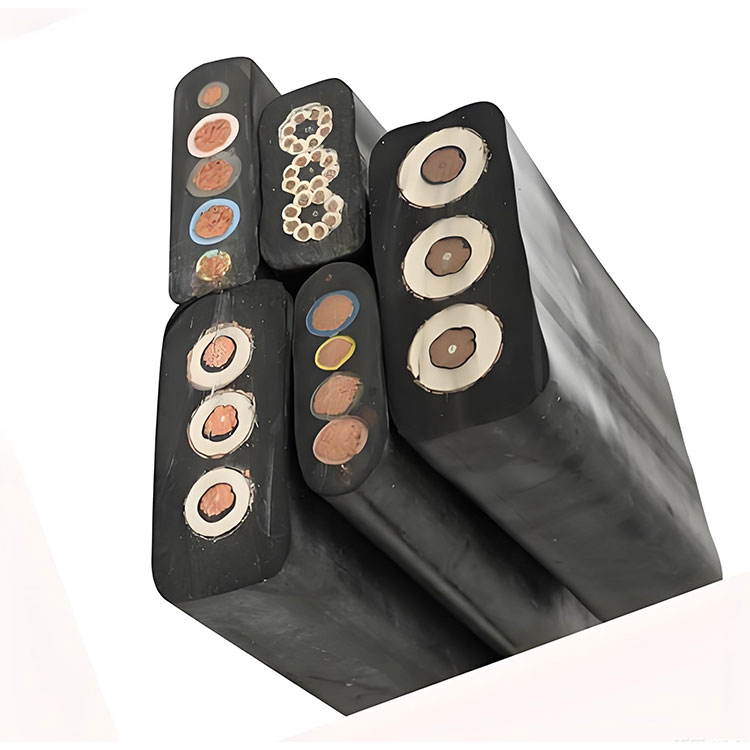

Abrasion resistant high voltage cable is a critical component in modern power transmission, heavy industry, mining, rail, offshore energy and large‑scale infrastructure projects. This in‑depth guide is designed for distributors, EPC contractors, OEM buyers and engineering teams looking for reliable information on industry‑leading wholesale manufacturers, suppliers and factories for abrasion resistant high voltage cable – without endorsing any specific company or brand.
Abrasion resistant high voltage cable is a specialized electrical power cable engineered to operate at high voltages while withstanding mechanical wear, scraping, impact and harsh environmental conditions. Compared with standard high voltage (HV) power cable, it incorporates tougher jacketing, reinforced armor or advanced polymers to resist damage caused by:
In the context of the global power cable market, abrasion resistant high voltage cable occupies a niche where mechanical robustness is as important as electrical performance. Typical voltage classes include:
Industry‑leading manufacturers and factories design abrasion resistant high voltage cables with a distinct set of characteristics that differentiate them from standard products.
While designs vary between suppliers and factories, abrasion resistant HV cables often include:
Abrasion resistant high voltage cable delivers multiple benefits to operators, EPC firms and asset owners in demanding environments.
The primary advantage is a significant extension of cable life under mechanical stress. A durable outer jacket and, where necessary, armor or textile braids help minimize:
In high‑value operations such as mining, ports and offshore platforms, unplanned shutdowns due to cable failure can be extremely expensive. Abrasion resistant HV cables help:
Mechanical damage to a high voltage cable can present serious electrical hazards. Toughened designs reduce the probability of:
Industry‑leading factories formulate jacket compounds and armor systems for specific environments, for example:
Although abrasion resistant high voltage cables may have a higher initial price than standard designs, they often deliver a lower total cost of ownership by:
Abrasion resistant high voltage cable is widely used across energy, infrastructure and process industries. Wholesale manufacturers and suppliers generally target the following sectors:
Temporary high voltage power distribution for large infrastructure projects, where cables are frequently moved, coiled and uncoiled, also benefits from abrasion resistant designs.
Wholesale factories and suppliers of abrasion resistant high voltage cables typically offer a variety of material combinations to suit application environments and technical specifications.
| Conductor Material | Main Features | Typical Use Cases |
|---|---|---|
| Annealed Copper | High conductivity, excellent flexibility, stable performance, compact designs | Critical infrastructure, mining cables, reeling and trailing systems |
| Compacted Copper | Reduced diameter for same cross‑section, smoother surface, easier pulling | High density cable trays, tunnels, offshore installations |
| Aluminum | Lighter weight, lower material cost, good conductivity‑to‑weight ratio | Overhead and buried HV distribution, long‑distance runs |
| Sector‑Shaped Conductors | Efficient packing in multi‑core designs, reduced outer diameter | Multi‑core MV/HV power cables where tray space is limited |
| Insulation Type | Characteristics | Advantages | Typical Voltage Range |
|---|---|---|---|
| XLPE (Cross‑Linked Polyethylene) | Thermoset, high dielectric strength, low dielectric loss | High current capacity, excellent aging resistance, widely standardized | 6 kV – 220 kV and above |
| EPR (Ethylene Propylene Rubber) | Elastomeric, flexible, good dielectric properties | Better flexibility, good resistance to moisture and chemicals | Commonly up to 35 kV, some designs higher |
| HEPR/HEPRC | High‑quality EPR variants | Improved thermal and electrical performance | MV applications up to 45 kV typically |
| Armor Type | Mechanical Protection | Corrosion Resistance | Notes |
|---|---|---|---|
| Steel Wire Armor (SWA) | High tensile and impact resistance, good crush protection | Requires proper corrosion protection in marine/salty environments | Widely used in direct burial and industrial applications |
| Steel Tape Armor (STA) | Good radial crush resistance, moderate impact resistance | Similar to SWA; external sheath must protect from corrosion | Suitable for fixed installations and ducts |
| Aluminum Wire Armor | Lower weight, non‑magnetic, good corrosion resistance | More resistant to galvanic corrosion in certain soils | Preferred where weight and corrosion are concerns |
| Non‑Metallic Armor / Braid | Good abrasion and impact resistance with flexibility | Non‑corrosive, lightweight | Reeling and trailing cables, mobile equipment |
| Sheath Material | Main Strengths | Typical Environment |
|---|---|---|
| Special PVC (Polyvinyl Chloride) | Good abrasion resistance, flame retardant, cost‑effective | Indoor industrial, tunnels, cable trays |
| PE (Polyethylene) | Excellent mechanical strength, low moisture absorption | Direct burial, outdoor installations, ducts |
| MDPE / HDPE | Enhanced toughness, stress‑crack resistance | Harsh soil conditions, rocky terrain, pipelines |
| Elastomeric Compounds (e.g., CPE, TPU) | Outstanding abrasion, tear and impact resistance, flexibility | Reeling, trailing, mining and mobile equipment |
| Halogen‑Free, Low Smoke (LSZH / LS0H) | Low toxicity, low smoke, good mechanical performance with special formulations | Tunnels, public buildings, offshore platforms, rail |
Leading wholesale manufacturers and factories design abrasion resistant high voltage cables to comply with international and regional standards. These standards cover electrical, mechanical, fire and environmental performance.
Abrasion resistance itself is not always standardized in a single global standard, but reputable factories typically perform:
Industry‑leading high voltage cable manufacturers and suppliers often maintain:
The following tables give sample specification ranges that wholesale buyers may encounter when sourcing abrasion resistant high voltage cables from manufacturers and factories. Exact values depend on standard, design and project requirements.
| Rated Voltage (U0/U) | Max. Operating Voltage (Um) | Typical Insulation | Max. Conductor Temperature |
|---|---|---|---|
| 6/10 kV | 12 kV | XLPE or EPR | 90 °C (normal), 130 °C (overload), 250 °C (short‑circuit) |
| 8.7/15 kV | 17.5 kV | XLPE or EPR | 90 °C (normal), 130 °C (overload), 250 °C (short‑circuit) |
| 12/20 kV | 24 kV | XLPE | 90 °C (normal), 130 °C (overload), 250 °C (short‑circuit) |
| 18/30 kV | 36 kV | XLPE | 90 °C (normal), 130 °C (overload), 250 °C (short‑circuit) |
| 26/35 kV | 40.5 kV | XLPE | 90 °C (normal), 130 °C (overload), 250 °C (short‑circuit) |
| 64/110 kV | 123 kV | XLPE | 90 °C (typical, according to standard) |
| Parameter | Typical Range / Value | Notes |
|---|---|---|
| Minimum Bending Radius (fixed) | 10 – 15 × overall diameter | Varies with construction and armor |
| Minimum Bending Radius (mobile) | 15 – 20 × overall diameter | For reeling and trailing applications |
| Operating Temperature Range | -40 °C to +90 °C (typical) | Special designs for colder or hotter climates are available |
| Impact Resistance | Tested per manufacturer’s own or relevant standards | Often verified using falling weight tests |
| Abrasion Resistance | Enhanced compared to standard PVC/PE sheath | Measured via abrasion wheel or drum tests |
| UV Resistance | UV‑stabilized compounds available | Important for outdoor and desert environments |
| Oil & Chemical Resistance | From basic to high resistance depending on compound | Critical in petrochemical and industrial plants |
| Item | Description | Example Data |
|---|---|---|
| Rated Voltage | U0/U (kV) | 8.7/15 kV |
| Core Count | Number of conductors | 3‑core |
| Conductor Size | Cross‑section | 3 × 240 mm² Cu |
| Conductor Class | Stranded, circular compacted | IEC Class 2 |
| Insulation | Material and thickness | XLPE, 3.4 mm (approx.) |
| Metallic Screen | Copper wires and tape | 16 mm² Cu wires per core |
| Armor | Type | Galvanized steel wire armor |
| Outer Sheath | Compound | Abrasion‑resistant PVC or PE |
| Approx. Overall Diameter | Outer diameter | 80 – 90 mm (indicative) |
| Typical Application | Installation type | Direct burial in rocky soil, high mechanical stress areas |
Abrasion resistant high voltage cable manufacturing requires strict process control and advanced equipment. From a factory perspective, several key factors determine product quality and competitiveness in wholesale and OEM markets.
Leading high voltage cable factories utilize:
Before shipment, abrasion resistant high voltage cables are typically subjected to:
When sourcing abrasion resistant high voltage cable from bulk manufacturers and suppliers, technical and commercial due diligence is essential.
Buyers should prepare detailed technical specifications, including:
Without naming specific companies, common evaluation criteria for selecting industry‑leading HV cable manufacturers and suppliers include:
Professional wholesale HV cable suppliers generally provide:
For large‑scale projects, logistics planning is an important part of cooperation with cable factories:
To justify selecting abrasion resistant designs, many engineers compare them to standard high voltage power cables.
| Aspect | Standard High Voltage Cable | Abrasion Resistant High Voltage Cable |
|---|---|---|
| Outer Sheath | General‑purpose PVC or PE | Reinforced, abrasion‑optimized sheath compounds |
| Armor / Reinforcement | Included only where necessary | Often more robust armor; optional braids or extra layers |
| Mechanical Durability | Designed for fixed installations with limited mechanical stress | Designed for frequent movement, harsh handling and tough terrain |
| Typical Applications | Buri ed in standard soil, ducts, indoor substations | Mining, tunnels, cranes, offshore, chemical plants, harsh sites |
| Initial Cost | Generally lower | Moderately higher due to enhanced materials |
| Lifecycle Cost | May be higher in high‑wear environments due to frequent replacement | Lower total cost in demanding conditions thanks to extended life |
| Risk of Damage | Higher under abrasion and impact | Reduced thanks to tough outer jacket and armor |
When specifying abrasion resistant high voltage cable, a structured selection process ensures both performance and cost‑effectiveness.
Abrasion resistant high voltage cable uses tougher outer sheaths, optional armor and sometimes reinforced bedding to withstand continuous mechanical wear, impact and harsh handling. It is specifically engineered for environments where standard cables would experience premature sheath damage and insulation failure.
Yes, they can generally be used in standard applications, provided they meet the electrical standards and installation requirements. However, due to their more robust design and higher material content, they may be heavier and more expensive than necessary for low‑stress environments.
Installation practices follow the same basic principles as other high voltage cables: adherence to bending radius, pulling tension limits, sealing, and proper jointing. Because they may be stiffer or heavier, correct handling equipment and planning are important, especially for long drum lengths.
Not always. Some designs achieve adequate abrasion resistance through special outer sheaths and non‑metallic reinforcements without metallic armor. The choice depends on the expected mechanical loads, installation method and regulatory requirements.
Applications involving frequent movement, harsh or rocky terrain, exposure to mechanical damage, or areas where cable replacement is difficult or expensive usually justify abrasion resistant designs. Engineering risk assessments and life‑cycle cost studies are useful tools to support this decision.
For website owners, industry directories and B2B platforms, a concise, keyword‑rich overview of abrasion resistant high voltage cable can improve organic visibility in search engines:
Abrasion resistant high voltage cable is a rugged, high‑performance power cable designed for demanding installations in mining, tunneling, offshore wind, ports, rail infrastructure and heavy industry. Leading wholesale manufacturers, bulk suppliers and cable factories produce abrasion resistant high voltage cables with reinforced sheaths, durable armor and specialized insulation systems such as XLPE and EPR. These abrasion proof high voltage cables deliver superior mechanical durability, extended service life and improved safety in harsh environments where standard HV power cables are easily damaged. When specifying abrasion resistant high voltage cable for large‑scale projects, it is essential to consider voltage class, conductor size, armor type, sheath compound, applicable IEC/IEEE standards and project‑specific environmental conditions.
Abrasion resistant high voltage cable plays a strategic role in modern power and industrial infrastructure. By combining robust mechanical protection with advanced electrical performance, these cables reduce downtime, enhance safety and optimize long‑term project economics in some of the world’s most challenging operating environments.
Engineering teams, procurement specialists, distributors and EPC contractors can use the information above as a neutral, standards‑based framework when engaging with industry‑leading wholesale manufacturers, suppliers and factories. Clearly defined technical requirements, along with an understanding of materials, construction options and standards, enable better sourcing decisions and more reliable high voltage installations.
```
