Aluminum alloy rubber sheathed cable is a high‑performance flexible power cable widely used in

industrial, mining, construction, and mobile power systems. For importers, distributors, and project

contractors looking for reliable wholesale manufacturers and factory suppliers,

understanding the technical features and industry standards of this cable type is essential.

1. What Is Aluminum Alloy Rubber Sheathed Cable?

Aluminum alloy rubber sheathed cable is a flexible power cable that uses a specially

formulated aluminum alloy conductor combined with an elastomer rubber sheath

(usually EPR, EPDM or similar compounds). It is designed for medium mechanical stress, frequent bending,

and harsh environments such as wet, oily, or outdoor installations.

In comparison with traditional copper rubber cables, aluminum alloy rubber sheathed cable offers

a lighter weight and competitive cost while maintaining good electrical and mechanical performance.

It is commonly used where mobility, flexibility, and durability are required, for example:

Portable power distribution systems on construction sites

Mining and quarry machinery power supply

Shipyards, docks, and port handling equipment

Industrial automation and movable equipment

Temporary power for events, exhibitions, and emergency projects

Top‑rated wholesale manufacturers and cable factories produce a wide range of

aluminum alloy rubber sheathed cables according to IEC, VDE, ICEA, BS, or customized

enterprise standards. Buyers can order OEM or ODM cables with specific conductor classes, insulation

materials, and sheath formulations tailored to local regulations.

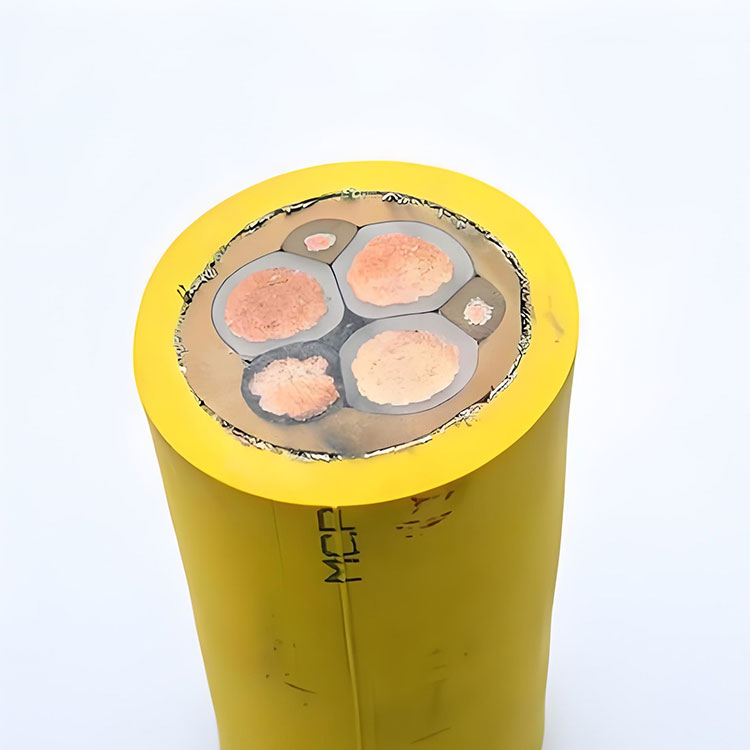

2. Basic Structure of Aluminum Alloy Rubber Sheathed Cable

The internal structure of an aluminum alloy rubber sheathed cable is optimized for flexibility, current‑carrying

capacity, and environmental resistance. A typical cable from a professional factory contains the following layers:

Conductor – Stranded aluminum alloy wires, usually Class 5 (flexible) according to IEC 60228.

Conductor screen (optional) – Semi‑conductive layer for medium voltage designs.

Insulation – Elastomer or cross‑linked rubber (EPR, EPDM) for high thermal and dielectric performance.

Filler / Separator – Non‑hygroscopic fillers to maintain roundness and mechanical stability.

Inner sheath (optional) – Thin rubber layer for multi‑core cables to bind cores together.

Armor (optional) – Steel wire armor (SWA) or textile braid for high mechanical protection.

Outer rubber sheath – Abrasion‑resistant elastomer compound, often oil‑resistant, flame‑retardant, and UV‑resistant.

**Typical Structural Elements of Aluminum Alloy Rubber Sheathed Cable**
Layer	Material	Main Function
Conductor	Stranded aluminum alloy	Carry electrical current, provide flexibility and reduced weight
Insulation	EPR / EPDM / XLPE‑rubber blend	Electrical insulation, heat resistance, dielectric strength
Filler	Non‑woven tapes, rubber fillers	Maintain cable shape, minimize deformation under bending
Inner Sheath	Rubber or PVC‑free elastomer	Bind multi‑cores, provide extra mechanical support
Armor (optional)	Steel wire, steel tape, or textile braid	Mechanical protection against crushing, impact, and rodent damage
Outer Sheath	Oil‑resistant rubber compound	Protect against abrasion, UV, chemicals, moisture, and flames

3. Key Advantages of Aluminum Alloy Rubber Sheathed Cable

When purchasing from wholesale manufacturers and factories, buyers often compare aluminum alloy

rubber sheathed cable with copper rubber cable or rigid power cables. Aluminum alloy rubber sheathed

cable offers several important benefits:

3.1 Lightweight and Cost Efficient

Aluminum alloy conductors are significantly lighter than copper for the same ampacity.

Reduced cable weight lowers transportation, handling, and installation costs.

Lower raw material cost helps wholesalers and distributors achieve better pricing in competitive markets.

3.2 Flexible and Easy to Install

Fine‑stranded aluminum alloy structure provides flexibility similar to copper flexible cables.

Rubber sheath allows repeated bending and coiling without cracking.

Suitable for cable reels, festoon systems, drag chains, and mobile machinery.

3.3 Excellent Environmental Resistance

Rubber sheath offers superior abrasion resistance compared to standard PVC sheaths.

Properly formulated compounds resist oils, grease, coolants, and many industrial chemicals.

UV‑stabilized outer sheath can withstand outdoor exposure and weathering.

Flame‑retardant and low‑smoke options are available from top‑rated factories.

3.4 Good Electrical Performance

Optimized aluminum alloy reduces creep and improves connection stability compared to pure aluminum.

Insulation systems are designed for continuous operation at 90 °C or higher, depending on design.

Low dielectric loss and stable insulation resistance over the service life of the cable.

3.5 Customizable for Different Markets

Wholesale manufacturers support custom voltage ratings (0.6/1 kV, 1.8/3 kV, and more).

Special versions: mining type, trailing cable, submersible‑pump cable, cold‑resistant cable, etc.

Color coding, marking, and packaging can be tailored to distributors’ brand requirements.

4. Common Applications and Use Scenarios

Aluminum alloy rubber sheathed cable is widely used in power distribution, mechanical equipment,

and temporary power supply. Wholesale buyers often stock multiple product lines targeting different

industries and regulations.

4.1 Construction and Temporary Power

Power connection between temporary distribution boards and mobile equipment.

Site lighting, tower cranes, concrete pumps, and welding machines.

Cables installed in cable trays, on the ground, or hung from scaffolding.

4.2 Mining and Underground Operations

Portable power for continuous miners, shuttle cars, and conveyor systems.

Trailing cables used behind moving mining equipment.

Underground environments requiring flame‑retardant and abrasion‑resistant sheaths.

4.3 Industrial Plants and Factories

Power supply to motors, pumps, compressors, and production lines.

Flexible connections in cable tracks and festoon systems.

Harsh industrial environments with oils, lubricants, or mechanical stress.

4.4 Ports, Shipyards, and Marine‑Related Use

Shore power connections for vessels and temporary port equipment.

Mobile cranes, winches, and hoisting machinery.

Areas exposed to salt spray and moisture where robust rubber sheaths are advantageous.

4.5 Renewable Energy and Temporary Installations

Temporary connection for wind turbine construction sites.

Solar farm temporary power and auxiliary equipment.

Events, exhibitions, and emergency power supply installations.

5. Relevant Standards and Certification

Top‑rated wholesale manufacturers and cable factories typically design and test aluminum alloy rubber

sheathed cables according to major international standards. When comparing suppliers, buyers should

pay attention to compliance and certification documents.

**Common Standards for Aluminum Alloy Rubber Sheathed Cable**
Standard / Regulation	Scope
IEC 60228	Conductors of insulated cables (classes, cross‑section, resistance limits)
IEC 60502‑1	Power cables with extruded insulation up to 1 kV and 3 kV
IEC 60332 series	Tests on electric and optical fibre cables under fire conditions
IEC 60754 / 61034	Halogen acid gas emission and smoke density tests (for LSZH variants)
VDE / EN standards	European cable types and safety requirements
National mining cable standards	Special designs for mining and underground use in specific countries
ISO 9001, ISO 14001, ISO 45001	Quality management, environmental management, occupational health & safety

In addition to these, many aluminum alloy rubber sheathed cable products carry third‑party approvals

such as CE, UKCA, or other national safety marks, depending on the export destination. When sourcing

from wholesale manufacturers, always request:

Type test reports and routine test records.

Material datasheets for insulation and sheath compounds.

Declarations of conformity for relevant directives or local regulations.

6. Typical Technical Specifications

Technical specifications vary by factory, but most top‑rated manufacturers follow similar design

principles. The table below summarizes common parameters for low‑voltage aluminum alloy rubber

sheathed cables used for power supply.

**Typical Technical Data – Aluminum Alloy Rubber Sheathed Cable (Low Voltage)**
Parameter	Typical Value / Range	Notes
Rated Voltage (U₀/U)	0.6/1 kV, 1.8/3 kV	Higher voltages available on request
Conductor Material	Aluminum alloy, stranded, Class 5	Flexible construction for mobile use
Conductor Cross‑Section Area	10 mm² – 400 mm² or above	Smaller or larger sizes available depending on manufacturer
Number of Cores	1, 2, 3, 3+1, 4, 5	Auxiliary control cores may be added for special cables
Insulation Material	EPR / EPDM or equivalent elastomer	XLPE‑rubber blends also common
Outer Sheath	Oil‑resistant rubber, flame‑retardant	Black or colored sheath options
Maximum Conductor Temperature	90 °C (continuous), 130 °C (overload), 250 °C (short‑circuit)	Exact values depend on design and standards
Ambient Temperature Range	‑25 °C to +90 °C (standard)	Cold‑resistant types can reach ‑40 °C or lower
Minimum Bending Radius	6 × outer diameter (fixed), 8 × outer diameter (mobile)	Check each design for precise values
Flame Retardance	IEC 60332‑1 or IEC 60332‑3 compliance	Higher fire performance available for special projects
Standard Color of Sheath	Black (UV‑resistant)	Custom colors available for OEM orders

For detailed specification comparison when evaluating manufacturers, buyers often request a

technical data sheet including:

Exact conductor resistance at 20 °C.

Nominal insulation and sheath thickness.

Overall cable diameter and approximate weight.

Current‑carrying capacity in air and in ground.

Maximum pulling tension and recommended bending radius.

7. Example Size and Ampacity Table

The following table provides an example range of sizes for a typical 0.6/1 kV aluminum alloy

rubber sheathed cable with three power cores plus one reduced neutral or earth core. Real values can

vary between factories and should be confirmed with the selected supplier’s catalog.

**Example Sizes for 0.6/1 kV Aluminum Alloy Rubber Sheathed Cable (3+1 Core)**
Size (mm²)	Core Structure	Approx. Overall Diameter (mm)	Approx. Weight (kg/km)	Approx. Current Rating in Air (A)
3×16 + 1×10	3 power cores + 1 reduced neutral	About 25 – 28	Approx. 600 – 650	70 – 90
3×25 + 1×16	3 power cores + 1 reduced neutral	About 28 – 32	Approx. 750 – 820	95 – 120
3×35 + 1×16	3 power cores + 1 reduced neutral	About 31 – 35	Approx. 880 – 960	115 – 145
3×50 + 1×25	3 power cores + 1 reduced neutral	About 34 – 38	Approx. 1050 – 1150	140 – 175
3×70 + 1×35	3 power cores + 1 reduced neutral	About 38 – 42	Approx. 1300 – 1450	175 – 210
3×95 + 1×50	3 power cores + 1 reduced neutral	About 42 – 47	Approx. 1600 – 1800	210 – 250
3×120 + 1×70	3 power cores + 1 reduced neutral	About 46 – 52	Approx. 1900 – 2150	240 – 285
3×150 + 1×70	3 power cores + 1 reduced neutral	About 50 – 55	Approx. 2200 – 2500	270 – 315
3×185 + 1×95	3 power cores + 1 reduced neutral	About 55 – 60	Approx. 2600 – 2950	305 – 350
3×240 + 1×120	3 power cores + 1 reduced neutral	About 60 – 66	Approx. 3100 – 3500	345 – 395

8. Overview of Manufacturing Process and Factory Capabilities

While different cable factories adopt their own production workflows, most top‑rated wholesale

manufacturers follow a similar process for aluminum alloy rubber sheathed cables:

Conductor drawing and stranding – Aluminum alloy rod is drawn and stranded into flexible conductors.

Insulation extrusion – Rubber or elastomer insulation is extruded over each conductor, followed by vulcanization.

Cabling / laying‑up – Insulated cores are twisted together with fillers to form multi‑core assemblies.

Inner sheath and armor (if required) – Inner sheath is applied, then steel wire or tape armor when specified.

Outer sheath extrusion – Final rubber sheath is extruded and cured to achieve full mechanical properties.

Quality testing – Electrical, mechanical, and environmental tests are performed on each production batch.

Cutting, packaging, and labeling – Finished reels or drums are prepared according to wholesale orders.

When evaluating factories, importers and distributors often look for:

Modern conductor stranding machines capable of flexible aluminum alloy constructions.

Rubber compounding capabilities or cooperation with qualified material suppliers.

Advanced extrusion lines for insulation and sheath with precise temperature control.

On‑site testing laboratories equipped for routine and type tests.

Strong R&D team to design customized aluminum alloy rubber sheathed cable products.

9. Wholesale Purchasing Considerations

When sourcing aluminum alloy rubber sheathed cable from top‑rated manufacturers and factories,

wholesale buyers should systematically evaluate technical specifications, quality control,

and commercial conditions.

9.1 Key Technical Parameters to Check

Rated voltage and insulation system.

Conductor cross‑section and resistance values.

Operating temperature range and environmental rating (oil‑resistant, UV‑resistant, etc.).

Flame‑retardant and fire performance level.

Maximum allowable bending radius and mechanical strength.

9.2 Quality Assurance and Inspection

Reliable cable factories implement strict quality control processes, including:

Incoming inspection for aluminum alloy rod and rubber compounds.

Online monitoring of conductor diameter, eccentricity, and insulation thickness.

Routine tests: voltage withstand, insulation resistance, conductor resistance.

Sample tests for aging, oil resistance, abrasion, and flexibility at low temperature.

9.3 Commercial Terms for Wholesale Orders

From the wholesale perspective, several commercial conditions influence supplier selection:

Minimum order quantity (MOQ) for standard and customized cables.

Lead time for production and shipping.

Available trade terms (FOB, CIF, EXW, etc.).

Payment terms and credit facilities.

Warranty period and after‑sales service policies.

9.4 Packaging and Logistics

Aluminum alloy rubber sheathed cable is usually delivered on wooden or steel drums,

suitable for long‑distance transport. Wholesale manufacturers can provide:

Standard export packing with fumigated wooden drums.

Plastic or steel drums for repeated use and rental fleets.

Customized labeling with barcodes, QR codes, and customer branding.

Flexible drum lengths according to project requirements.

10. Comparison: Aluminum Alloy Rubber Sheathed Cable vs. Copper Rubber Cable

Many buyers wonder when to choose aluminum alloy rubber sheathed cable instead of copper rubber cable.

Both have advantages depending on the application and budget.

**Comparison of Aluminum Alloy Rubber Sheathed Cable and Copper Rubber Cable**
Aspect	Aluminum Alloy Rubber Sheathed Cable	Copper Rubber Cable
Conductor Material	Aluminum alloy	Copper
Weight	Lighter; easier handling for long lengths	Heavier; higher load on supporting structures
Material Cost	Generally lower raw material cost	Higher cost due to copper price
Conductivity	Lower conductivity; larger cross‑section needed for same ampacity	Higher conductivity at smaller cross‑section
Flexibility	High flexibility with proper stranding design	Excellent flexibility for fine‑stranded copper
Typical Applications	Cost‑sensitive projects, long‑distance runs, mobile installations	High current density, compact installations, specific standards
Connection Hardware	Requires aluminum‑compatible lugs and terminals	Standard copper lugs widely available
Corrosion Considerations	Need correct jointing techniques to avoid galvanic corrosion	Less sensitive but still requires proper termination

For many industrial and construction projects, aluminum alloy rubber sheathed cable provides a cost‑effective

alternative to copper, especially for large cross‑sections and long cable runs where weight and budget are

major concerns.

11. How to Specify Aluminum Alloy Rubber Sheathed Cable

To obtain accurate quotations from wholesale manufacturers and cable factories, it is important to

clearly define the cable specification. A typical purchase specification may include:

Rated voltage (e.g., 0.6/1 kV).

Number of cores and cross‑section (e.g., 4×50 mm²).

Conductor class (flexible, stranded aluminum alloy).

Insulation and sheath material requirements (oil‑resistant, UV‑resistant, flame‑retardant).

Fire performance (IEC 60332‑3, low smoke, halogen‑free if required).

Installation conditions (fixed laying, mobile, mining, outdoor, underground).

Required standards or certificates for the target market.

Drum length, packaging, and marking information.

Providing detailed technical requirements helps manufacturers propose the most suitable

aluminum alloy rubber sheathed cable design and ensures that the cable will meet real

operating conditions and local regulations.

12. Frequently Asked Questions About Aluminum Alloy Rubber Sheathed Cable

12.1 Can aluminum alloy rubber sheathed cable replace copper cable directly?

Aluminum alloy rubber sheathed cable can often replace copper rubber cable if the cross‑section

is adjusted to provide the required current‑carrying capacity and voltage drop performance.

However, terminals and connectors must be suitable for aluminum conductors, and local regulations

should be checked before substitution.

12.2 Is aluminum alloy safe for flexible power cables?

Modern aluminum alloy conductors are specially designed to reduce creep and improve mechanical

stability. When produced by experienced factories in compliance with recognized standards,

aluminum alloy rubber sheathed cable is safe and reliable for flexible power connections.

12.3 What is the typical service life of these cables?

Under normal operating conditions and proper installation, aluminum alloy rubber sheathed

cables are designed for long service life, often 20 years or more. Actual life depends on

environmental factors, mechanical stress, and maintenance practices.

12.4 Are low‑smoke, halogen‑free versions available?

Many manufacturers can produce low‑smoke, halogen‑free (LSZH) aluminum alloy rubber sheathed

cables by using halogen‑free elastomer compounds. These are suitable for tunnels, public

buildings, and areas with strict fire safety requirements.

12.5 Can these cables be used underwater?

Standard aluminum alloy rubber sheathed cables are designed for moist and wet conditions but

not necessarily for continuous submersion. For underwater or submersible applications, buyers

should specify special designs with appropriate water‑blocking structures and certifications.

13. Using This Information for Listings and Industry Pages

The content on aluminum alloy rubber sheathed cable can be effectively used on:

Wholesale product category pages and cable directory listings.

Industry resource pages introducing flexible power cable solutions.

Technical blog posts targeting engineers, project managers, and procurement teams.

By providing detailed, technically accurate descriptions of aluminum alloy rubber sheathed

cable structure, advantages, and specifications, site owners can attract qualified visitors,

including distributors, OEMs, contractors, and end users who are actively searching for

reliable cable manufacturers and factory partners.

新闻中心
