Copper wire shielded control cable is a critical product for modern industry, automation, process control, energy systems, and building management.

Trusted manufacturers and exporters of copper wire shielded control cable focus on high-grade raw materials, strict compliance with international standards,

and repeatable quality control to deliver safe, reliable, and long‑life cable solutions.

This comprehensive, SEO‑oriented guide explains what copper wire shielded control cable is, how it is constructed, how industry‑leading manufacturers

design and test it, and what buyers should look for when sourcing quality assured shielded control cables for domestic and export projects.

1. What Is Copper Wire Shielded Control Cable?

Copper wire shielded control cable is a multi‑core cable used to transmit low‑voltage control signals and auxiliary power in industrial and

commercial systems. It uses copper conductors for excellent conductivity and incorporates one or more shielding layers to reduce electromagnetic

interference (EMI) and radio frequency interference (RFI).

In simple terms, a copper wire shielded control cable:

• Has one or many copper conductors (solid or stranded)
• Includes insulation around each conductor
• Often groups conductors into pairs, triads, or multi‑core bundles
• Uses a shield (braid, tape, or combination) to block external noise
• Has an overall sheath (jacket) for mechanical and environmental protection

Because of the consistent electrical performance of copper and the effectiveness of metallic shielding, this cable type is widely used in:

• Industrial control panels
• PLC and DCS control systems
• Instrumentation and measurement loops
• Building management systems (BMS)
• Transport, marine, mining, and energy infrastructure

1.1 Typical Voltage Ratings

Copper wire shielded control cable is usually low‑voltage. Common rated voltages are:

• < 300/500 V for instrumentation and signal cables
• 300/500 V or 450/750 V for general control cables
• Up to 0.6/1 kV for heavy‑duty or power‑control combined cables

1.2 Why Shielding Is Important in Control Cables

In control and instrumentation systems, noise and interference can cause:

• Wrong sensor readings
• Unstable control loops
• False alarms or trips
• Communication errors in fieldbus or serial links

A copper wire shielded control cable uses metallic shields to:

• Reduce coupling of external electromagnetic fields into the conductors
• Minimize cross‑talk between adjacent pairs or cores
• Provide a low‑impedance return path to ground for induced noise
• Improve signal integrity over longer distances

2. Construction of Copper Wire Shielded Control Cable

Most trusted manufacturers follow a structured cable design with clearly defined layers. Exact construction depends on standard,

application, and environmental requirements, but the main elements are similar.

2.1 Typical Layer Structure

2.2 Conductor Materials and Classes

Copper wire shielded control cable uses copper as the conductor due to its low resistivity and stable performance. Based on IEC 60228, common

conductor classes include:

• Class 1 – Solid copper conductor (used in fixed installations)
• Class 2 – Stranded copper conductor (standard flexibility)
• Class 5 – Flexible stranded copper (fine wires for flexible cables)
• Tinned copper – Copper with thin tin coating for better corrosion resistance and solderability, especially in marine or humid environments

2.3 Insulation Materials

Trusted control cable manufacturers and exporters select insulation materials according to voltage rating, thermal class, and flame performance:

• PVC (Polyvinyl Chloride) – Economic, widely used, good mechanical properties, standard for 70 °C or 90 °C cables.
• XLPE (Cross‑Linked Polyethylene) – Higher temperature rating, low dielectric constant, good for long‑distance and medium‑voltage control.
• PE (Polyethylene) – Low dielectric loss, used in instrumentation and data control where capacitance is critical.
• LSZH (Low Smoke Zero Halogen) – For indoor building, tunnel, or public facilities requiring low smoke and zero halogen emissions during fire.
• Specialized compounds – Silicone, EPR and others for high‑temperature or special chemical resistance requirements.

2.4 Shield Types in Copper Wire Shielded Control Cables

The shield is a defining feature of copper wire shielded control cable. Industry practice uses several types of shielding:

2.5 Outer Sheath and Environmental Protection

The outer sheath protects copper wire shielded control cable from:

• Moisture and water ingress
• UV radiation and sunlight aging
• Chemicals, oils, fuels, and solvents
• Mechanical abrasion and impact
• Fire, flame spread, and smoke emission

Different jacket compounds are selected for indoor, outdoor, underground, marine, and industrial applications. Flame‑retardant or

fire‑resistant outer sheaths are common in building and critical infrastructure.

3. Key Advantages of Copper Wire Shielded Control Cable

Copper wire shielded control cable offers many technical and commercial advantages in comparison with unshielded or non‑copper solutions.

Trusted manufacturers and exporters focus on maximizing these benefits through careful design and quality assurance.

3.1 Electrical Performance Advantages

• High conductivity: Copper has low resistivity, so voltage drop is minimized over distance.
• Low signal attenuation: Proper shielding plus low conductor resistance keeps signals cleaner and stronger.
• Improved signal integrity: Shielding reduces EMI and cross‑talk, vital for sensitive analog and digital control signals.
• Stable performance over temperature: Copper conductors and quality insulation maintain predictable resistance and capacitance.

3.2 EMC (Electromagnetic Compatibility) Advantages

• Protection against external disturbances from motors, drives, welding equipment, and power lines.
• Lower emission from the cable itself, aiding compliance with EMC regulations.
• Reduced risk of false signaling and equipment malfunctions due to noise.

3.3 Mechanical and Operational Advantages

• Durability: Robust construction and quality jacketing extend service life even in harsh conditions.
• Flexibility: Stranded copper cores and braid shields provide acceptable bend radius for cable trays and ducts.
• Ease of termination: Copper conductors and tinned braid are easy to strip, crimp, and solder.
• Compatibility: Works with standard terminals, glands, and connectors across the control industry.

3.4 Safety and Regulatory Advantages

• Compliance with international standards simplifies design approvals.
• Flame retardant and low smoke options help meet building and tunnel regulations.
• Reliable operation reduces risk of process accidents, downtime, and safety incidents.

4. Typical Applications of Copper Wire Shielded Control Cable

Copper wire shielded control cables are used wherever stable, interference‑free control and signal transmission is required.

4.1 Industrial Automation and Process Control

• Programmable Logic Controller (PLC) I/O wiring
• Distributed Control System (DCS) field wiring
• Motor control centers (MCC) for start/stop and feedback circuits
• Variable Frequency Drive (VFD) control lines (not power output)
• Industrial robots, conveyors, packing machines

4.2 Instrumentation and Measurement

• 4–20 mA and 0–10 V analog signals
• Thermocouple and RTD sensor wiring (with proper calibration)
• Pressure, flow, level, and temperature transmitters
• SCADA and telemetry signals

4.3 Building Management Systems (BMS)

• HVAC control and monitoring
• Lighting control and dimming systems
• Fire alarm interfaces (where allowed by code)
• Access control and security system interfaces

4.4 Energy, Oil & Gas, and Infrastructure

• Substation control and protection auxiliary circuits
• Power plant instrumentation lines
• Oil & gas upstream and downstream process control
• Railway signaling and control (according to relevant rail standards)

4.5 Marine, Offshore, and Harsh Environments

• Shipboard automation and navigation control
• Offshore platform instrumentation
• Corrosive or salt‑laden atmospheres using tinned copper braided shield

5. Industry Standards for Copper Wire Shielded Control Cable

Most trusted manufacturers and exporters design copper wire shielded control cables in accordance with national and international standards.

Compliance ensures predictable performance and simplifies project engineering and approvals.

When sourcing from global exporters, buyers should request documentation of standard compliance, including type test reports and factory

routine test procedures.

6. Technical Specifications of Copper Wire Shielded Control Cable

The following tables summarize common technical specifications for copper wire shielded control cables. Actual values depend on

insulation material, construction, and applicable standards.

6.1 Typical Conductor Sizes and Resistance

6.2 Common Core Configurations

6.3 Insulation and Sheath Temperature Ratings

6.4 Electrical Parameters for Instrumentation‑Grade Cables

7. Production Practices of Trusted Copper Wire Shielded Control Cable Manufacturers

Manufacturers and exporters regarded as “most trusted” in the copper wire shielded control cable market share several characteristics in their

production and quality systems. Understanding these practices helps buyers evaluate suppliers objectively.

7.1 Raw Material Selection

• Use of high‑conductivity copper meeting or exceeding IEC requirements.
• Certified insulation and sheath compounds with known physical and fire properties.
• High‑quality copper braiding wire with consistent diameter and tensile strength.
• Use of halogen‑free, flame‑retardant materials where required by project specifications.

7.2 Process Control

• Computer‑controlled wire drawing, stranding, and annealing for uniform conductor quality.
• Precision extrusion of insulation and sheathing with accurate thickness monitoring.
• Consistent twist lay length and core assembly to control electrical parameters such as capacitance and cross‑talk.
• Well‑controlled braiding process to maintain target screen coverage and tightness.

7.3 In‑Process and Final Testing

7.4 Quality Management and Certifications

Trusted manufacturers and exporters of copper wire shielded control cable typically demonstrate:

• ISO 9001 certified quality management system.
• ISO 14001 environmental management, important for large infrastructure projects.
• ISO 45001 or OHSAS 18001 occupational health and safety management.
• Third‑party product certifications (e.g., CE marking, marine approvals, or national certifications).

8. How Exporters Serve the Global Copper Wire Shielded Control Cable Market

Leading exporters of copper wire shielded control cable support international customers through technical adaptation, compliance management,

and supply chain reliability.

8.1 Adapting Cables to Regional Standards

• Designing control cables to comply with regional standards (IEC, EN, BS, UL/CSA, VDE).
• Providing multi‑standard documentation to ease equipment certification.
• Adjusting marking, color code, and flame performance to local regulations.

8.2 Export Documentation and Compliance

• Detailed test reports and certificates of conformity (CoC).
• Material safety data sheets (MSDS) and halogen/smoke test reports for LSZH products.
• Origin certificates and customs documentation for international logistics.

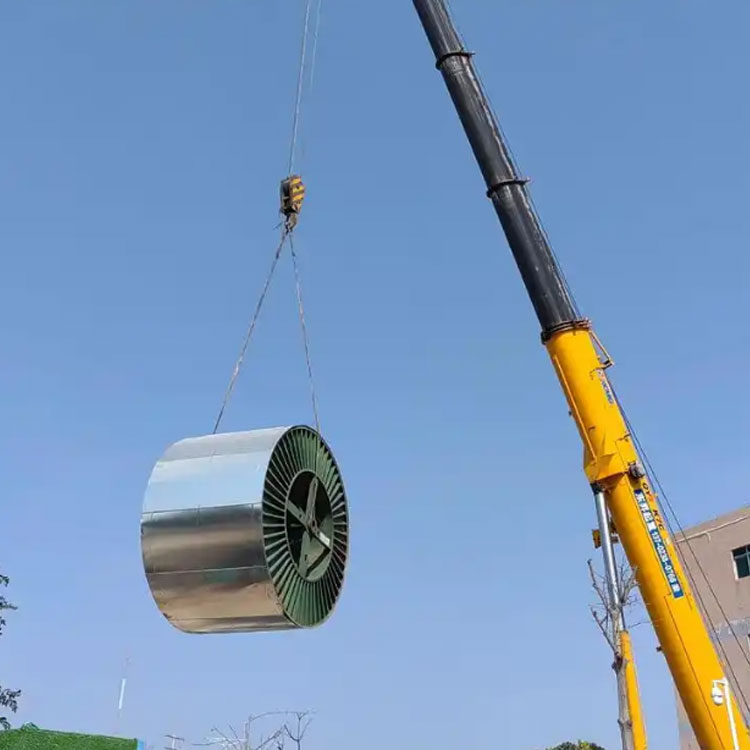

8.3 Logistics and Packaging of Control Cables

• Standard drum lengths and custom cut‑to‑length options.
• Robust export packaging to protect shielded control cables in transit.
• Clear labeling with cable type, size, voltage rating, drum length, and batch number.

9. Selecting Copper Wire Shielded Control Cable for Your Project

To choose the correct copper wire shielded control cable, engineers and buyers should analyze electrical, environmental, mechanical,

and regulatory requirements together.

9.1 Key Selection Criteria

• Voltage rating: Choose cables rated at or above system voltage (e.g., 300/500 V, 450/750 V, or 0.6/1 kV).
• Number and size of cores: Determine based on current, voltage drop, and number of signals.
• Shield type: Select braid, tape, or combination according to EMI level and frequency range.
• Insulation and sheath materials: Match temperature, mechanical, and fire performance to site conditions.
• Installation method: Consider tray, conduit, duct, underground, or direct burial requirements.
• Certification needs: Confirm standards and approvals required by project specifications.

9.2 Example Specification Checklist

10. Installation Considerations for Shielded Control Cables

Even when using high‑quality, copper wire shielded control cable from trusted manufacturers, correct installation is essential for achieving

full performance.

10.1 Shield Termination and Grounding

• Terminate shields properly at one or both ends depending on EMC design (single‑point vs multi‑point grounding).
• Avoid long exposed shield tails that can act as antennas.
• Use compatible glands and connectors that maintain shield continuity where needed.

10.2 Separation from Power Cables

• Route control cables separately from high‑voltage power cables to minimize coupling.
• Use dedicated trays or compartments for instrumentation where possible.
• If crossing is unavoidable, cross power and control cables at right angles.

10.3 Bending Radius and Mechanical Protection

• Respect the manufacturer’s minimum bending radius to prevent damage to insulation and shields.
• Provide tray support and avoid mechanical strain during pulling.
• Use armored versions or conduits in areas with high mechanical risk or rodent presence.

11. Testing and Quality Assurance in Copper Wire Shielded Control Cables

Quality assurance is a critical factor that differentiates high‑reputation copper wire shielded control cable manufacturers and exporters

from low‑cost, low‑quality vendors.

11.1 Type Tests vs Routine Tests

• Type tests: Comprehensive tests performed on representative sample cables to validate design and compliance (e.g., fire tests, aging tests, long‑duration electrical tests).
• Routine tests: Repeated for all production lengths or batches (e.g., conductor resistance, high‑voltage test, dimensional checks).

11.2 Common QA Test Matrix

12. Common Types of Copper Wire Shielded Control Cables

In the marketplace, shielded control cables are often offered in several standard families. The exact naming varies by country and manufacturer,

but the functional categories are similar.

12.1 PVC Insulated, PVC Sheathed, Braid Shielded Control Cable

• Most widely used general‑purpose copper wire shielded control cable.
• Suitable for indoor and protected outdoor installations.
• Flame retardant versions widely available.

12.2 XLPE Insulated, PVC or LSZH Sheathed Shielded Control Cable

• Higher temperature rating and lower dielectric losses.
• Often used where longer runs or elevated temperatures are expected.
• LSZH sheath for public or underground spaces requiring low smoke and no halogen.

12.3 Individually Shielded Pair / Triad Instrumentation Cable

• Each pair or triad has its own shield, plus overall shield.
• Maximum noise immunity for low‑level analog signals.
• Used widely in process industries and refineries.

12.4 Armored Shielded Control Cable

• Combines shield with armor for mechanical protection and, if metallic, additional EMC benefit.
• Suitable for direct burial or industrial floors with high mechanical impact risk.

13. Environmental and Sustainability Considerations

Environmental responsibility is increasingly important for manufacturers and exporters of copper wire shielded control cable.

13.1 Material Recycling

• Copper conductors and shields are highly recyclable materials.
• Trusted manufacturers implement scrap copper recovery in production.

13.2 Low Smoke Zero Halogen (LSZH) Options

• LSZH sheath and insulation reduce toxic and corrosive gas generation in fire.
• Preferred in public buildings, tunnels, mass transit, and data centers.

13.3 Compliance with Environmental Regulations

• Restriction of Hazardous Substances (RoHS) compliance.
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) awareness in the European market.

14. Frequently Asked Questions About Copper Wire Shielded Control Cable

14.1 When is shielding required for control cables?

Shielding is recommended whenever cables run near strong electromagnetic sources, when signals are low‑level or high‑speed, or where

regulatory EMC requirements are strict. Many industrial and instrumentation applications specify copper wire shielded control cable as

standard practice.

14.2 Is tinned copper braid better than bare copper braid?

Tinned copper braid offers better corrosion resistance, especially in humid or marine environments, and is easier to solder. Bare copper

braid is cost‑effective and suitable for dry, non‑corrosive conditions.

14.3 Can shielded control cables be used outdoors?

Yes, provided the outer sheath is UV‑resistant and rated for outdoor use. For direct burial or exposed industrial routes, armored and

heavy‑duty jacketed versions are common.

14.4 Do shields always need to be grounded at both ends?

Shield grounding strategy depends on EMC design and system architecture. Some applications use single‑ended grounding to avoid ground loops,

while others use multi‑point grounding for better high‑frequency noise suppression. System designers should specify the appropriate method.

14.5 Can copper wire shielded control cable carry power as well as signals?

Many control cables carry low‑power auxiliary supplies along with control and signal circuits. However, high‑power circuits and motor feeds

are generally served by dedicated power cables engineered for current and thermal load.

15. Summary – What Defines a Quality Assured Copper Wire Shielded Control Cable

A well‑designed, quality assured copper wire shielded control cable from a trusted manufacturer or exporter combines:

• High‑purity copper conductors with consistent cross‑section and low resistance.
• Reliable insulation and sheath materials tailored to the operating environment.
• Effective shielding using copper braid, foil, or combinations to manage EMI and RFI.
• Robust mechanical design suitable for installation and long‑term operation.
• Compliance with recognized international and regional standards.
• Documented quality control, testing, and certification for each production batch.

By understanding these elements of copper wire shielded control cable design, construction, and verification, engineers, specifiers, and

procurement specialists can confidently select products that match technical requirements and support reliable, safe, and efficient

control systems in industrial, commercial, and infrastructure projects worldwide.

```
