1. What Is Crane Special Cable?

Crane special cable is a category of flexible power and control cable engineered for

use on cranes and related lifting equipment. These cables must withstand continuous

bending, torsion, acceleration, deceleration, vibration, and harsh environmental conditions.

Compared with standard industrial cables, crane special cables feature enhanced mechanical

strength, improved flexibility, superior insulation, and high resistance to oil, UV, ozone,

abrasion, and sometimes chemicals or extreme temperatures.

Typical applications of crane special cable include:

• Overhead travelling cranes (EOT cranes)
• Gantry cranes and container cranes
• Bridge cranes, portal cranes, shipyard cranes
• Harbour cranes, offshore cranes and deck cranes
• Tower cranes and construction site hoists
• Warehouse and workshop lifting systems
• Festoon systems, cable trolleys, drag chains and reeling drums

Because crane special cable is mission‑critical for safe operation, project owners and

OEMs normally source from specialized crane cable manufacturers, suppliers, and exporters

with strong technical expertise and proven quality systems.

2. Key Benefits of Using High‑Quality Crane Special Cable

Selecting the right crane cable design and partnering with expert crane cable manufacturers

provides a range of technical and commercial benefits.

2.1 Technical Advantages

• High Flex Life: Special conductor stranding and optimized insulation

  systems provide millions of bending cycles without conductor breakage.

• Mechanical Robustness: Enhanced sheath compounds and reinforcement

  protect against abrasion, impact, and crushing in harsh crane environments.

• Stable Electrical Performance: Low resistance, controlled capacitance,

  and reliable insulation keep voltage drop and signal interference within design limits.

• Environmental Resistance: UV, ozone, oil, and weather‑resistant jackets

  ensure long life in outdoor and marine applications.

• Improved Safety: Flame retardant, low‑smoke and halogen‑free

  options help comply with fire safety regulations and protect personnel.

• Optimized Weight and Diameter: Efficient cable designs reduce load on

  cable management systems, drums, and festoon trolleys.

2.2 Commercial and Operational Advantages

• Reduced Downtime: Long‑life crane cables decrease the frequency

  of unplanned stoppages and maintenance.

• Lower Total Cost of Ownership: Higher initial cable quality

  usually translates into extended service life and fewer replacements.

• Better System Availability: Reliable power and control signal

  transmission increases crane productivity and throughput.

• Regulatory Compliance: Certified crane cable manufacturers

  help ensure conformity with IEC, EN, VDE, UL and other standards.

• Global Project Compatibility: Experienced exporters can supply

  multi‑standard, multi‑voltage solutions for international projects.

3. Main Types of Crane Special Cable

Crane cable manufacturers, suppliers, and exporters offer a wide portfolio of crane

special cable constructions. The correct type depends on mechanical movement, installation

method, voltage level, and environmental conditions.

3.1 Flat Crane Cable (Flat Festoon Cable)

Flat crane cable, often referred to as flat festoon cable, is specifically designed

for festoon systems running on I‑beams or C‑rails. Conductors are laid parallel in a flat

geometry, providing excellent flexibility in one plane and reduced cable stack height.

• Ideal for: Overhead cranes, bridge cranes, hoists with festoon systems
• Features: Low bending radius, stable tracking, reduced twisting
• Options: Power + control cores, integrated earth conductor, optional steel support

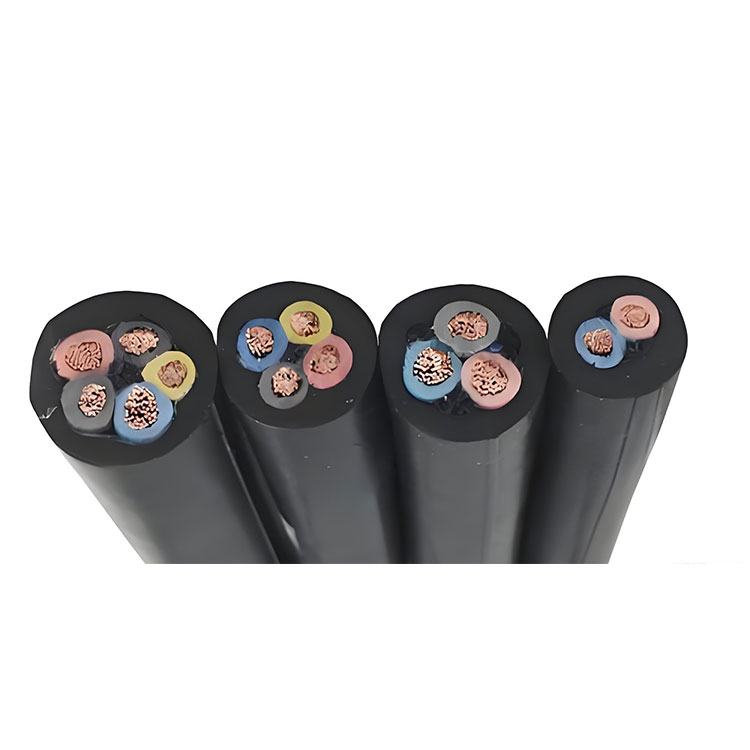

3.2 Round Crane Cable

Round crane cable is used where multi‑directional movement, torsion and frequent

reeling or unreeling are expected. It is common in cable reels, energy chains, and

drag chain systems.

• Ideal for: Reeling drums, festoon loops, drag chains, mobile equipment
• Features: Optimized round geometry, high torsion resistance, robust outer sheath
• Options: Shielded or unshielded, control pairs, fibre optic elements

3.3 Drum Reeling Cable (Reelable Crane Cable)

Drum reeling cable is engineered to be wound and unwound on cylindrical or

spiral drums under mechanical tension. These crane special cables withstand constant

bending and tensile loads along long travel distances.

• Ideal for: Ship‑to‑shore container cranes, stacking cranes, bulk handling cranes
• Features: Tensile strength members, anti‑twist designs, high abrasion resistance
• Options: Medium voltage power, integrated optical fibre, load‑bearing elements

3.4 Pendant Cable (Pendant Control Cable)

Pendant cable is used to connect a handheld controller or pendant station

to the crane’s control system. It must be flexible, abrasion‑resistant, and

capable of withstanding repeated flexing and occasional pulling.

• Ideal for: Hoist pendants, push‑button control stations, remote control backups
• Features: Fine‑stranded conductors, tear‑resistant outer sheath
• Options: Integrated steel support strand, numbering or colour‑coded cores

3.5 Hoist Cable and Lifting Equipment Cable

These cables supply power and control signals to electric hoists, trolley motors,

and auxiliary devices mounted on the crane bridge or boom. Designs are optimized for

vertical motion and limited horizontal travel.

3.6 Special Purpose Crane Cables

Many crane cable manufacturers and exporters also supply highly specialized

crane cables for:

• Offshore and marine cranes (salt spray, oil and chemical resistant)
• Arctic or desert environments (very low or high ambient temperatures)
• Mining and tunnelling cranes (mechanically reinforced, flame resistant)
• Explosive atmospheres (Ex‑approved cable systems)
• Data, bus, and fibre optic communication integrated into crane cables

4. Typical Construction of Crane Special Cable

Even though designs vary among crane cable manufacturers, most crane special cables

share a common construction philosophy aimed at maximizing flex life and mechanical robustness.

4.1 Conductor

• Material: Annealed bare copper or tinned copper for improved corrosion resistance.
• Stranding: Extra‑flexible, fine‑stranded Class 5 or Class 6 according to IEC 60228.
• Cross‑sections: Typically from 0.5 mm² up to 240 mm² or higher for power circuits.

4.2 Insulation

• Common materials: PVC, rubber (EPR/NBR), cross‑linked polyethylene (XLPE),

  or specialized thermoplastic elastomers (TPE).

• Requirements: High dielectric strength, flexibility at low temperature,

  resistance to heat, oil and chemicals depending on the application.

4.3 Core Identification

• Colour coding according to IEC, VDE or local standards.
• Numbered cores using printed numbers when colour sets are repeated or for large core counts.
• Green‑yellow protective earth conductor clearly marked.

4.4 Inner Sheath, Fillers and Bedding

• Fillers (textile or synthetic) maintain roundness, minimize conductor movement,

  and evenly distribute mechanical stress.

• Inner sheath or wrapping improves core stability during bending and torsion.

4.5 Reinforcement and Strength Members

• Textile, aramid, or steel strength members for drum reeling crane cables.
• Central or peripheral steel support elements in pendant cables.
• Anti‑twist designs for long travel reeling and high‑speed movement.

4.6 Shielding (Optional)

• Individual or overall shields using copper braid or aluminium/polyester tapes.
• Used when EMI/EMC performance is critical, for example in frequency inverter

  controlled motors or data transmission.

4.7 Outer Sheath (Jacket)

• Materials: Heavy‑duty PVC, PUR (polyurethane), chloroprene rubber, or

  halogen‑free compounds.

• Properties: High abrasion resistance, tear strength, UV and ozone resistance,

  oil and fuel resistance, flame retardancy as needed.

5. Typical Technical Specifications of Crane Special Cable

Exact technical data depend on each crane cable manufacturer and the chosen construction.

However, buyers, engineers, and sourcing managers should understand common specification

ranges for power and control crane special cables.

5.1 Electrical Parameters

• Rated voltage for control cables: typically 300/500 V or 450/750 V.
• Rated voltage for power cables: typically 0.6/1 kV, with medium voltage options

  up to 6/10 kV or higher for large cranes.

• Test voltage depending on insulation material and standard (e.g. 2.5–4 kV AC).
• Frequency: usually 50/60 Hz for power; DC or AC for control and signalling.

5.2 Mechanical and Environmental Parameters

• Minimum bending radius: Often from 5 × outer diameter (OD)

  for simple motion up to 10–15 × OD for reeling and heavy‑duty applications.

• Operating temperature range: Commonly −25 °C to +70 °C

  for PVC, extended to −40 °C to +90 °C or more for rubber and PUR.

• Dynamic tensile load: Specified for reeling cables and

  long‑travel crane special cables.

• Oil, UV, and ozone resistance: Critical for outdoor,

  port and offshore crane applications.

5.3 Fire Performance

• Flame retardant according to IEC 60332 or equivalent standards.
• Low smoke and halogen‑free (LSHF) jacket options for indoor or tunnel applications.
• Enhanced fire resistance where functional integrity during fire is required

  (project specific).

6. Typical Applications of Crane Special Cable

The world’s best crane cable manufacturers, suppliers, and exporters design

their product portfolios around key crane and lifting applications. Understanding

the application helps in matching the correct crane cable specification.

6.1 Overhead Travelling Cranes (EOT Cranes)

• Flat festoon cables for crane bridge and trolley power and control.
• Round control and power cables in cable chains or flexible conduits.
• Pendant cables for operator control stations.

6.2 Gantry and Portal Cranes

• Long‑travel drum reeling cables for main power and control circuits.
• Special reeling crane cables with high tensile strength for outdoor tracks.

6.3 Harbour and Container Cranes

• Heavy‑duty drum reeling crane cables with medium voltage options.
• Hybrid energy and data crane cables with integrated fibre optics.
• UV, ozone, and salt‑water resistant sheaths for port environments.

6.4 Shipyard and Offshore Cranes

• Oil‑resistant, flame retardant crane cables for shipbuilding hall cranes.
• Marine‑approved cables designed to withstand splash zones and deck exposure.

6.5 Construction and Tower Cranes

• Flexible power and control cables for tower crane slewing, hoist and trolley mechanisms.
• Pendant cables and drum reeling cables for site hoists and mobile cranes.

6.6 Industrial and Warehouse Hoisting Systems

• Crane special cables for monorails, jib cranes, workstation cranes.
• Lightweight flat festoon cables for compact systems.

7. Relevant Standards and Certifications for Crane Special Cable

To evaluate and compare crane cable manufacturers, suppliers and exporters,

buyers often look at compliance with international and regional cable standards.

While specific codes differ by country, several references are commonly used.

• IEC Standards: Various IEC 60228, IEC 60332, IEC 60502 and

  related standards for conductors, voltage ratings, and fire performance.

• EN / HD Standards: European harmonized cable standards

  for flexible cables and rubber cables.

• VDE Standards: German standards widely used as reference

  for industrial and crane special cable.

• UL / CSA: North American safety listing and certification

  for flexible power and control cables.

• Marine & Offshore Approvals: Certificates from ship

  registries and classification societies for offshore crane cables.

• ISO 9001 / ISO 14001: Quality and environmental management

  systems held by crane cable manufacturers and exporters.

When sourcing crane special cables across borders, experienced exporters

can provide multi‑standard designs and assist with documentation for regulatory approval.

8. How to Choose the Best Crane Cable Manufacturers, Suppliers and Exporters

Selecting the right partner for crane special cable supply is as important as

selecting the correct cable type. The following checklist can help buyers and

procurement teams when evaluating potential crane cable manufacturers and exporters.

8.1 Technical Capability

• Dedicated product range for crane special cable and reeling cables.
• In‑house R&D and testing facilities for flex life, torsion, and environmental resistance.
• Ability to design custom crane cables for unique travel distances or harsh environments.
• Engineering support for cable routing, selection and system design.

8.2 Quality and Certification

• Compliance with IEC, EN, VDE, UL, CSA or other relevant standards.
• Quality management certifications such as ISO 9001.
• Material traceability and documented test reports.
• Performance history in similar crane projects and industries.

8.3 Production Capacity and Lead Time

• Flexibility to supply small batches for maintenance and large volumes for

  OEM crane production.

• Reliable lead times and buffer stock for critical cross‑sections and

  common crane cable sizes.

• Capability to handle urgent orders and project‑specific delivery schedules.

8.4 Export Experience and Logistics

• Proven export track record for crane special cables to multiple regions.
• Knowledge of customs requirements, documentation, and cable marking regulations.
• Secure packaging solutions for heavy drum reeling cables and long lengths.

8.5 Technical Support and After‑Sales Service

• Application engineering support during tender, design, and installation phases.
• Assistance with troubleshooting, failure analysis, and lifetime optimization.
• Training for installers and maintenance teams on handling crane cables.

9. How to Select the Right Crane Special Cable for Your Application

Once a reliable crane cable manufacturer or supplier is identified,

the next step is choosing the appropriate crane special cable construction.

The following practical factors should be evaluated.

9.1 Movement Type and Travel Distance

• Short horizontal travel with festoon system: Flat crane

  cables with suitable bending radius.

• Long travel distances with reeling drum: Drum reeling

  crane cables with high tensile strength and anti‑twist design.

• Vertical pendant and hoist movement: Pendant cables

  and flex cables with integrated support elements if needed.

9.2 Electrical Requirements

• Rated voltage of motors, drives and control circuits.
• Required conductor cross‑sections based on current, voltage drop and

  ambient temperature.

• Need for screened or shielded cable segments for VFDs or data signals.

9.3 Environmental Conditions

• Indoor or outdoor use, exposure to sunlight, moisture, oil or chemicals.
• Ambient and operating temperature range (e.g. cold storage, foundry, coastal zone).
• Potential presence of mechanical hazards such as falling objects or heavy traffic.

9.4 Regulatory and Project Requirements

• Local electrical codes and crane standards.
• Fire safety requirements, including LSHF or special fire performance classes.
• Customer or operator internal standards for cable types and colour coding.

9.5 Installation and Maintenance Considerations

• Available space for cable drums, festoon tracks and cable chains.
• Desired lifetime and maintenance interval for crane special cables.
• Ease of termination and compatibility with existing connector systems.

10. Buyer FAQ – Crane Special Cable Manufacturers, Suppliers and Exporters

10.1 What information should I prepare before requesting a quotation?

Before contacting crane cable manufacturers or exporters, prepare:

• Cable type or application description (festoon, reeling, pendant, chain).
• Number of cores, cross‑sections, and rated voltage.
• Installation layout, travel distance, and movement details.
• Ambient conditions, temperature range, and environmental influences.
• Any mandatory standards, approvals, or project specifications.

10.2 How important is sample testing for crane special cables?

For new projects or when changing supplier, trial lengths or sample reels

can be used to verify compatibility with existing cable management systems,

bending radii, and actual mechanical loads. Many crane cable manufacturers

support this approach to reduce risk.

10.3 Can one crane cable manufacturer supply both power and data cables?

Yes. Many specialized crane cable manufacturers and exporters offer

hybrid solutions combining power, control, bus, and fibre optic elements

within a single crane cable, or a coordinated portfolio for complete crane wiring.

10.4 How long is the typical service life of crane special cables?

Service life depends on cable quality, installation design, duty cycle,

and maintenance. With correct selection and installation, quality crane

special cables can achieve very high flex cycle counts. It is essential

to follow the manufacturer’s guidelines for bending radius and tensile loads.

11. Conclusion

Crane special cable is a highly engineered product that plays a central

role in the reliability and safety of cranes and lifting equipment. When

selecting crane cable manufacturers, suppliers, and exporters, buyers

should focus on technical competence, proven quality, export experience,

and application support rather than only initial price.

By understanding the main types of crane special cables, typical

construction features, key technical specifications, and industry

standards, procurement teams and engineers can make informed sourcing

decisions. Whether for overhead cranes, port cranes, tower cranes or

automated warehouse systems, choosing the right crane cable and the right

manufacturing partner directly supports safe operation, long service life,

and optimized total cost of ownership.
