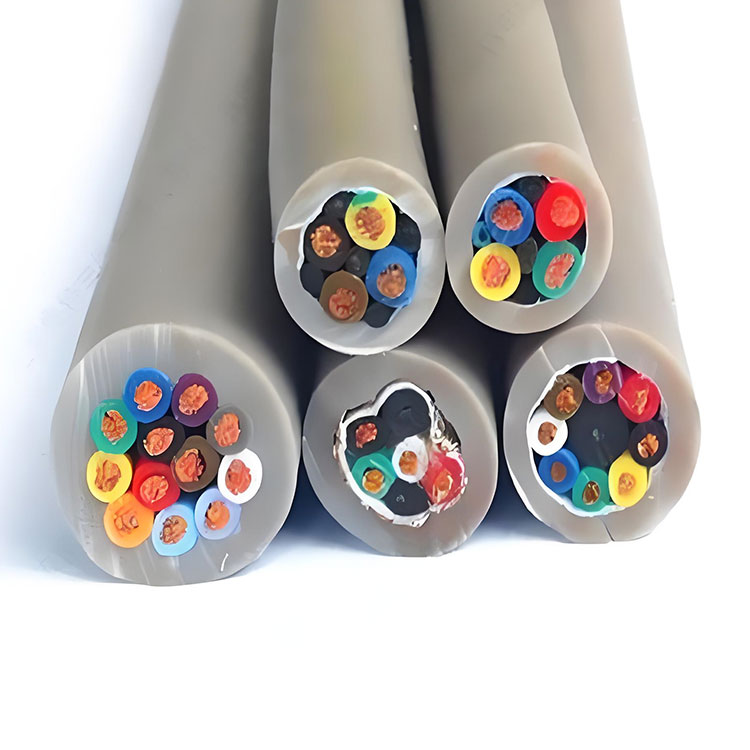

1. What Is a High-Temperature Resistant Computer Cable?

A high-temperature resistant computer cable is a specialized data or control cable

engineered to maintain reliable signal integrity and insulation performance under elevated ambient

temperatures, continuous heat exposure, or intermittent thermal peaks.

Unlike standard office-grade computer cables, these products are optimized for industrial and harsh

environments where temperatures may significantly exceed the range of normal commercial equipment.

In the context of wholesale and factory production, the term generally covers:

• High-temperature resistant data communication cables (e.g., industrial Ethernet, fieldbus, serial)
• High-temperature resistant computer control and signal cables for PLC, CNC and automation systems
• High-temperature resistant USB, HDMI, Display and specialty computer interconnects for harsh conditions

High-temperature resistant computer cables are typically designed to withstand

continuous operating temperatures of 90 °C, 105 °C, 125 °C or even

200 °C and above, depending on insulation materials and construction.

2. Core Features and Advantages

Industry-leading manufacturers and suppliers of high-temperature resistant computer cables focus on

delivering a combination of mechanical, electrical and environmental performance.

Key features and advantages usually include:

• Extended Temperature Range – Reliable operation at elevated ambient temperatures,

  often between -40 °C and +125 °C or higher, depending on design.

• Stable Signal Integrity – Optimized impedance control, shielding and conductor design

  ensure low attenuation, minimal crosstalk and stable data transmission under heat stress.

• Enhanced Insulation Performance – Use of high-performance insulation materials such as

  XLPE, FEP, PTFE, silicone rubber and high-temperature PVC yields excellent dielectric strength.

• Improved Mechanical Durability – Resistance to deformation, cracking and brittleness

  after long-term exposure to heat and mechanical stress.

• Flame Retardancy and Low Smoke Options – Many high-temperature computer cables

  are available in flame-retardant, low smoke zero halogen (LSZH) and

  fire-resistant variants.

• Chemical and Oil Resistance – Insulation and sheath materials can be tailored to provide

  resistance to oils, coolants, solvents and industrial chemicals.

• Flexibility and Bend Resistance – Especially in robotic, drag-chain or moving

  applications, cables are designed for repeated flexing at high temperatures.

These features make high-temperature resistant computer cables a critical component in modern

industrial and high-performance computing environments.

3. Typical Applications and Use Scenarios

High-temperature resistant computer cables are widely used wherever computing, control or signal

transmission must operate in thermally demanding conditions. Common applications include:

• Industrial Automation and Control – PLC, DCS, SCADA, CNC machine connections.
• Factory and Process Automation – High-temperature Ethernet and bus cables

  near ovens, kilns, furnaces and molding machines.

• Power Generation – Power plant computer monitoring systems and data acquisition

  in turbine halls and boiler rooms.

• Metallurgy and Steel Industry – Computer-based process control in steel mills,

  foundries and smelting facilities.

• Automotive and EV Manufacturing – On-line testing, measurement and robot

  communication inside paint shops and high-temperature zones.

• Railway and Transportation – On-board computer systems and monitoring electronics

  exposed to high ambient temperature and sunlight.

• Aerospace and Defense – Ground support equipment, avionics test benches and

  high-temperature computing platforms.

• Oil, Gas and Petrochemical – Computerized monitoring and control in refineries

  and petrochemical plants where process temperatures are high.

• Server Rooms and Edge Computing in Harsh Sites – Ruggedized high-temperature

  links for outdoor edge computing, containers and enclosures with limited cooling.

Wholesale buyers often need a mix of standard catalog items and customized high-temperature cables to

cover the diverse requirements of these sectors.

4. Cable Construction and Material Options

The performance of a high-temperature resistant computer cable depends heavily on its internal construction

and the materials used by the factory. Typical elements include:

4.1 Conductor Materials

• Bare Copper (BC) – Widely used due to excellent conductivity; suitable for most

  high-temperature computer cable applications.

• Tinned Copper (TC) – Provides enhanced corrosion resistance and solderability,

  especially under high humidity and moderate heat.

• Nickel-Plated Copper (NC) – Offers superior oxidation resistance at elevated

  temperatures for more demanding conditions.

• Copper Alloy Conductors – Used where specific mechanical or temperature properties

  are required.

4.2 Insulation Materials

Insulation materials are a key differentiator for high-temperature resistant cables.

Common options offered by industry-leading suppliers include:

4.3 Shielding Structures

To ensure stable data transmission, high-temperature computer cables often include one or more

shielding layers:

• Aluminum Foil Shield (Overall or Individual Pair)
• Tinned Copper Braid Shield
• Combined Foil + Braid Shield
• Drain Wire for improved grounding effectiveness

4.4 Jacket / Sheath Materials

The outer sheath protects the internal structure and must withstand heat, mechanical and chemical stress.

Common jacket materials include:

• Heat-resistant PVC
• PUR (Polyurethane) for abrasion and oil resistance
• TPE (Thermoplastic Elastomer) for flexibility
• Rubber jackets for harsh industrial use
• LSZH fire-safe compounds in public installations

5. Key Technical Specifications and Performance Parameters

When evaluating high-temperature resistant computer cables from wholesale manufacturers and suppliers,

the following technical parameters are critical:

• Rated voltage (e.g., 30 V, 300 V, 600 V)
• Rated temperature (e.g., 90 °C, 105 °C, 125 °C, 150 °C, 200 °C)
• Conductor size and construction (AWG, strand count, material)
• Impedance and capacitance for data transmission
• Signal attenuation and crosstalk values
• Insulation resistance and dielectric strength
• Flame test category (e.g., VW-1, FT1, IEC 60332-1)
• Oil, UV and chemical resistance ratings
• Minimum bend radius and flex life

5.1 Typical Specification Comparison Table

The table below summarizes representative performance ranges for several typical categories of

high-temperature resistant computer cables. Actual values differ by manufacturer and design.

6. Common Types of High-Temperature Computer Cables

Industry-leading factories supply a wide range of high-temperature computer cable types,

often under unified product families to simplify wholesale purchasing. Major categories include:

6.1 High-Temperature Industrial Ethernet Cables

• Cat5e, Cat6, Cat6A variants
• Shielded twisted pair (STP) and unshielded (UTP)
• Industrial-grade jackets (PUR, PVC, TPE) with elevated temperature ratings
• Options for fixed installation or continuous flex applications

6.2 High-Temperature USB, RS-232, RS-485 and Fieldbus Cables

• High-temperature USB 2.0 / 3.x-compatible cable constructions
• Industrial serial communication cables for RS-232 / RS-485 near heat sources
• Fieldbus cables (e.g., PROFIBUS, Modbus, CAN) with high-temperature insulation

6.3 High-Temperature Computer Control and Instrumentation Cables

• Multi-core signal cables with high-temp insulation and extended life
• Individually shielded pairs for noise-sensitive signals
• Overall shielding for EMI/RFI protection

6.4 High-Temperature Video and Display Cables

• Ruggedized HDMI and DisplayPort-style constructions for embedded systems
• High-temperature coaxial and multicore designs for industrial vision systems

6.5 Special and Custom High-Temperature Computer Cables

• Hybrid power + data cables in a single jacket
• Composite constructions integrating fiber-optic and copper conductors
• Custom color-coding, printing and jacket materials for branding and identification

7. International Standards and Compliance

Professional high-temperature resistant computer cable manufacturers typically design and test their

products according to recognized international standards and regulations. Common references include:

• UL / cUL standards for wire and cable (e.g., UL 758, UL 444, UL 1581)
• IEC cable standards (e.g., IEC 60227, IEC 60245, IEC 60332 series)
• EN / VDE European norms for low-voltage and data cables
• RoHS (Restriction of Hazardous Substances) compliance
• REACH chemical substance regulations
• CPR (Construction Products Regulation) for building cables in the EU
• Flame tests such as VW-1, FT1, FT4,

  and IEC 60332-1 / -3

Buyers should review datasheets and certifications supplied by manufacturers to ensure that high-temperature

computer cables meet the regulatory requirements of the target market or project.

8. Manufacturing Processes in Industry-Leading Factories

High-quality high-temperature resistant computer cable production involves several

specialized stages. Leading factories typically implement:

1. Conductor Drawing and Stranding – High-purity copper rod is drawn to the

   specified AWG size and then stranded to achieve flexibility and conductivity targets.

2. Insulation Extrusion – High-temperature polymer compounds (such as XLPE or fluoropolymers)

   are extruded onto the conductors under precise temperature and pressure control.

3. Core Assembly / Twisting – Pairs, triples or multi-core bundles are twisted or

   cabled according to design to optimize impedance and reduce crosstalk.

4. Shielding Application – Aluminum foil shields, copper braids or combined shields

   are applied to individual pairs or to the overall cable.

5. Jacket Extrusion – The outer sheath is extruded, often using high-temperature

   PVC, PUR, LSZH or other specialized compounds.

6. Marking and Printing – Cable type, rating, batch number and manufacturer data

   are printed on the jacket for traceability.

7. Cooling, Coiling and Packaging – Finished cable is cooled, tested, coiled or

   wound on reels and packaged for shipment.

Advanced factories use online measurement systems and automated process control to maintain volume

consistency and ensure that high-temperature performance is stable across large production runs.

9. Quality Control and Testing Methods

Reliable high-temperature computer cable production depends on rigorous quality control.

Wholesale-oriented suppliers usually conduct:

• Incoming Material Inspection – Verification of conductor purity, insulation pellets and jacket compounds.
• Dimensional Checks – Measurement of conductor diameter, insulation thickness and overall cable diameter.
• Electrical Testing – Conductor resistance, insulation resistance, dielectric strength and continuity tests.
• Network and Data Performance Tests – For Ethernet and high-speed data cables: NEXT, FEXT, return loss, attenuation and delay skew.
• Temperature Aging and Heat Shock Tests – Evaluation of insulation and jacket stability at elevated temperatures.
• Mechanical Tests – Tensile strength, elongation, bending and flexing tests.
• Flame and Fire Tests – To verify compliance with VW-1, FT1, FT4, IEC 60332, etc.
• Chemical and Oil Resistance Tests – Immersion tests in oils, solvents and corrosive chemicals when required.

10. Wholesale Sourcing, MOQ and Packaging Options

High-temperature resistant computer cables are often purchased in bulk by distributors, system integrators

and OEMs. Typical wholesale arrangements with manufacturers and suppliers include:

10.1 Minimum Order Quantity (MOQ)

• Standard catalog items: MOQs can range from a few hundred to several thousand meters per model.
• Custom-designed cables: MOQs are generally higher due to tooling and material setup costs.
• Cable assemblies with connectors: MOQs depend on connector type, assembly complexity and testing requirements.

10.2 Standard Lengths and Packaging Forms

Industry-leading factories typically offer several packaging formats suitable for warehouse storage

and onward distribution:

10.3 Logistics and Lead Time

• Lead times can vary from stock-available dispatch to several weeks for custom constructions.
• Bulk shipments are usually arranged by sea, air or multimodal logistics depending on urgency.
• Export packaging is designed to protect high-temperature cables from moisture and mechanical damage.

11. OEM / ODM Customization Capabilities

Many high-temperature computer cable factories operate as OEM / ODM suppliers for

international brands and distributors. Common customization options include:

• Cable Structure Design – Custom conductor counts, pair groupings and shielding schemes.
• Material Selection – Choice of insulation, jacket materials and flame-retardant systems to meet project requirements.
• Color and Marking – Custom jacket colors, surface printing, meter marking and brand logos.
• Special Temperature Ratings – Design for continuous operation at specific high temperatures (e.g., 125 °C, 150 °C).
• Connectorization – Pre-terminated cables with USB, RJ45, M12, D-sub and other industrial connectors rated for high temperature.
• Packaging and Labeling – Private label packaging, barcodes and documentation tailored to distributor needs.

OEM and ODM cooperation allows buyers to build their own product lines of high-temperature resistant

computer cables without operating their own manufacturing facilities.

12. Selection Guide for Buyers and Engineers

Choosing the right high-temperature resistant computer cable involves balancing technical,

regulatory and commercial factors. The following steps can help streamline the decision process when

sourcing from wholesale suppliers and factories:

12.1 Define Application Requirements

• Operating temperature range (normal and peak)
• Installation environment (indoor, outdoor, conduit, cable tray, moving machinery)
• Presence of oils, chemicals, moisture or UV exposure
• Required data rate, protocol and distance
• Fire safety and regulatory requirements

12.2 Identify Needed Cable Category

• Data communication (Ethernet, USB, serial, fieldbus)
• Computer control and signal
• Video / display connections
• Hybrid or custom designs

12.3 Evaluate Technical Specifications

Confirm that the proposed high-temperature computer cable meets:

• Temperature rating for conductor and jacket
• Voltage rating and insulation requirements
• Impedance, attenuation and bandwidth for the communication protocol
• Mechanical properties for fixed or flexible installation

12.4 Review Compliance and Certification

• Check UL, IEC, EN or local standards compliance.
• Confirm RoHS and REACH status for environmental safety.
• Assess flame retardant or LSZH properties if needed.

12.5 Consider Total Cost of Ownership

• Balance initial material cost against expected service life.
• Consider maintenance, downtime and replacement costs in harsh environments.
• Evaluate supplier stability, lead time and after-sales support.

13. Frequently Asked Questions (FAQ)

Q1: How is a high-temperature resistant computer cable different from a standard cable?

High-temperature computer cables are designed with specialized insulation and jacket materials capable

of withstanding higher operating temperatures without degrading.

They also maintain better electrical performance, mechanical integrity and safety in harsh

environments compared to standard office-grade cables.

Q2: What temperature rating should I choose?

The selected rating should exceed the maximum expected ambient temperature by a safe margin, taking into

account any additional heat from nearby equipment.

For many industrial applications, 105 °C or 125 °C rated cables offer a good balance between

performance and cost. For extreme conditions, 150 °C or 200 °C solutions may be required.

Q3: Are high-temperature cables always more rigid?

Not necessarily. While some high-temperature materials are stiffer, manufacturers can optimize compound

formulation and conductor stranding to maintain flexibility. Silicone, TPE and specialized PUR jackets

can provide excellent flexibility even at elevated temperatures.

Q4: Can high-temperature computer cables also be flame retardant?

Yes. Many high-temperature resistant computer cables are engineered to be both heat-resistant and

flame-retardant. LSZH and specialized flame-retardant compounds can be used, and the cable can be tested

to meet specific flame test categories.

Q5: What information should I provide to a wholesale manufacturer for a custom order?

When contacting a factory, it is helpful to provide:

• Detailed description of the application and environment
• Required temperature and voltage ratings
• Number of cores or pairs, conductor size and shielding
• Preferred insulation and sheath characteristics
• Compliance standards and certifications needed
• Estimated annual volume and packaging preferences

Q6: How do I compare offers from different suppliers?

Besides price, evaluate:

• Datasheet completeness and technical transparency
• Test reports and certifications
• Sample quality and performance tests
• Production capacity, delivery reliability and communication quality
