1. What Is Low Smoke Zero Halogen (LSZH) Fire-Resistant Cable?

A Low Smoke Zero Halogen (LSZH) fire-resistant cable is a specially engineered

electrical cable designed to:

• Maintain circuit integrity for a specified time during fire (fire resistance / fire survival).
• Produce minimal smoke when exposed to fire or high temperatures (low smoke).
• Emit virtually no halogen acids or toxic gases when burned (zero halogen / halogen free).

LSZH fire-resistant cables are widely used in buildings and infrastructure where safe evacuation,

equipment protection, and continuity of essential services are critical. These cables combine

fire-resistance (ability to keep working in fire) with fire-safety

(reduced smoke and toxic emissions).

1.1 Low Smoke Requirement

During a fire, smoke is one of the major threats to life and property. Low smoke cable sheaths and

insulation are formulated from halogen-free polymers that:

• Limit total smoke volume generated during combustion.
• Improve visibility along escape routes and in equipment rooms.
• Reduce contamination of surfaces and equipment by soot and corrosive deposits.

Smoke emission is usually measured according to standards such as IEC 61034 or

equivalent national methods. LSZH fire-resistant cables must satisfy defined minimum light

transmittance levels after test burning to prove low smoke characteristics.

1.2 Zero Halogen Requirement

Conventional cables often use PVC or other halogenated materials. When burned, these compounds release

chlorine, bromine, or fluorine gases, which can form highly corrosive and toxic acids in the presence of

moisture. Zero halogen (halogen free) cables are designed to overcome this risk.

LSZH cable compounds:

• Contain no intentionally added chlorine, fluorine, bromine, or iodine.
• Minimize release of acid gases during burning (tested to IEC 60754 or similar).
• Lower the risk of corrosion of metals and electronic components.
• Reduce toxic hazards to occupants and rescue teams.

1.3 Fire-Resistant / Fire-Survival Function

A fire-resistant cable is designed to maintain electrical continuity under defined fire

conditions for a specified time (typically 30, 60, 90, or 120 minutes). For LSZH fire-resistant cables,

this performance is achieved using:

• Special mica tape or mineral insulation around conductors.
• Heat-resistant LSZH insulation and bedding layers.
• Optimized cable design tested under fire while energized and mechanically stressed.

Fire-resistance is verified according to recognized standards such as

IEC 60331, EN 50200, or regional building codes. The result is a

cable that continues to supply power to critical systems like emergency lighting, smoke extraction,

alarms, and communication equipment even while directly exposed to flames.

2. Key Benefits of LSZH Fire-Resistant Cables

Low Smoke Zero Halogen fire-resistant cables offer a combination of safety, performance, and compliance

advantages that make them highly attractive for modern building and infrastructure projects.

The main benefits include:

2.1 Enhanced Life Safety

• Greatly reduced smoke density improves evacuation visibility.
• Minimal release of toxic and corrosive halogen gases helps protect occupants and rescue teams.
• Continuous operation of emergency circuits supports safe evacuation and firefighting efforts.

2.2 Protection of Equipment and Assets

• Limited acid gas emission reduces corrosion of metal structures, switchgear, servers, and control systems.
• Lower cable flame spread helps confine fire to a smaller area.
• Reduced contamination simplifies post-fire cleanup and recovery.

2.3 Regulatory and Code Compliance

Many building codes, transportation guidelines, and industrial standards increasingly require or strongly

recommend LSZH fire-resistant cable solutions for:

• Public assembly buildings and high-rise towers.
• Hospitals, airports, metro systems, and tunnels.
• Data centers, clean rooms, and control rooms.

Using quality-assured LSZH fire-resistant cables from trusted manufacturers and exporters helps project

owners demonstrate compliance with international and local safety regulations.

2.4 Long-Term Reliability

• High thermal stability and resistance to tracking and erosion.
• Improved aging performance of insulation and sheath materials.
• Stable electrical properties over the service life of the cable.

2.5 Environmental Considerations

• Halogen-free formulations can ease waste handling and disposal compared with PVC.
• Reduced toxic emissions support greener building and infrastructure policies.
• Compatibility with sustainability and environmental certification programs.

2.6 Brand and Project Value

Using LSZH fire-resistant cables adds long-term value to construction and infrastructure projects:

• Demonstrates commitment to occupant safety and asset protection.
• Strengthens the reputation of project sponsors and stakeholders.
• Reduces risk of downtime and costly damage in the event of a fire.

3. Industry Terminology and Common Abbreviations

The cable industry uses several overlapping terms to describe Low Smoke Zero Halogen fire-resistant cables.

Understanding these names and acronyms is important when selecting products from international

manufacturers and exporters.

When dealing with product datasheets or export catalogs, it is important to differentiate between:

• Flame-retardant LSZH cables: Halogen-free with limited flame spread, but not necessarily certified for fire survival.
• Fire-resistant LSZH cables: Tested to maintain functionality for specified durations under defined fire conditions.

4. Typical Construction of LSZH Fire-Resistant Cables

While exact design details vary between manufacturers and standards, quality-assured Low Smoke Zero

Halogen fire-resistant cables generally share a similar construction philosophy. The goal is to combine

electrical performance, mechanical strength, LSZH properties, and certified fire survival.

4.1 Main Components

1. Conductor

   • Usually annealed copper (solid or stranded), sometimes tinned or plated.
   • Aluminium may be used in larger power cables where permitted by standards.
   • Conductors are sized according to current rating, voltage, and installation conditions.

2. Fire-Resistant Layer

   • Typically mica glass tape or mineral-based fire barrier wrapped around each conductor or core.
   • Ensures insulation integrity and dielectric strength under fire, even when conventional polymers degrade.

3. Insulation

   • Halogen-free cross-linked or thermoplastic compounds (e.g., XLPE LSZH, EPR LSZH, HF-EVA).
   • High-temperature resistance and low smoke, halogen-free composition.
   • Color-coded according to regional wiring practices.

4. Bedding / Filler

   • LSZH bedding to provide a smooth surface for armoring and outer sheath.
   • Halogen-free fillers to maintain circular shape for multi-core cables.

5. Armour (if required)

   • Steel wire armour (SWA), steel tape armour (STA), or other metallic/non-metallic protective layers.
   • Provides mechanical protection, impact resistance, and sometimes EMC shielding.
   • Selection depends on installation environment (underground, ducts, mechanical risk).

6. Outer Sheath

   • Halogen-free, low-smoke, flame-retardant LSZH polymer sheath.
   • Provides environmental, mechanical, and chemical protection.
   • Usually colored orange, red, or as required for fire safety identification.

4.2 Common Design Variants

LSZH fire-resistant cables come in multiple design variants tailored to application needs:

• Single-core fire-resistant LSZH power cables for feeders and risers.
• Multi-core fire-resistant LSZH control cables for emergency controls and instrumentation.
• Fire-resistant LSZH data and communication cables (twisted pair, coax, fiber with LSZH jackets).
• Armored fire-resistant LSZH cables for underground or high-risk mechanical environments.

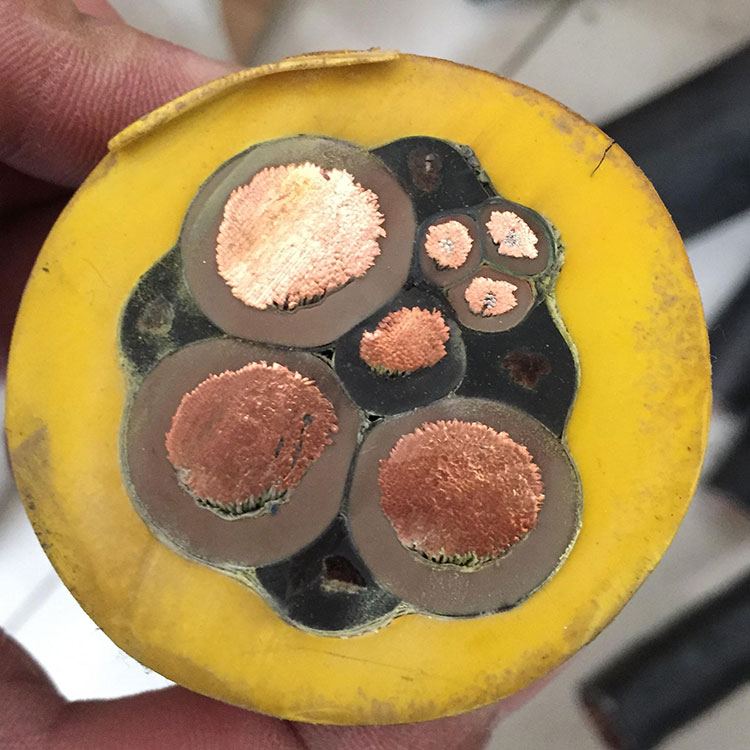

4.3 Example Cross-Section Description

A typical 3-core fire-resistant LSZH power cable rated 600/1000 V might include:

• Class 2 stranded copper conductors, 10–300 mm².
• Mica tape wrapped over each conductor.
• LSZH XLPE insulation on each conductor.
• LSZH bedding around triplexed cores.
• Galvanized steel wire or tape armor (optional based on application).
• Red or orange LSZH outer sheath.

5. Relevant Standards and Performance Classifications

Trusted manufacturers and exporters of Low Smoke Zero Halogen fire-resistant cables rely on recognized

international and regional standards to design, test, and certify their products. These standards help

specifiers compare performance levels and ensure regulatory compliance.

5.1 Key International Standards for LSZH Fire-Resistant Cables

5.2 Reaction to Fire vs. Fire Resistance

It is important to distinguish between reaction to fire and

fire resistance:

• Reaction to fire refers to how a cable contributes to fire development:

  flame spread, heat release, smoke production, flaming droplets, and acidity of gases.

  Examples: IEC 60332, IEC 61034, IEC 60754, EN 50575 Euroclass ratings.

• Fire resistance refers to the ability of a cable to maintain circuit

  integrity for a defined period when exposed to fire, often with mechanical shocks and water spray.

  Examples: IEC 60331, EN 50200, BS 6387.

Quality-assured LSZH fire-resistant cables are designed to perform well in both categories:

limiting fire propagation and smoke while continuing to operate essential circuits in a fire.

5.3 Euroclass Reaction to Fire (EN 50575 / CPR)

In the European Union, the Construction Products Regulation (CPR) requires that

power, control, and communication cables used permanently in buildings be classified according to

EN 50575. Euroclasses for reaction to fire include:

Manufacturers and exporters often specify the Euroclass rating of their LSZH fire-resistant cable

families, along with test reports from accredited laboratories.

6. Typical Applications and Installation Environments

Low Smoke Zero Halogen fire-resistant cables are installed wherever fire safety and circuit continuity are

essential. Trusted manufacturers and exporters supply LSZH fire-resistant cables to a wide range of

sectors, including:

6.1 Building and Construction

• High-rise residential and commercial towers.
• Shopping malls, stadiums, cinemas, and public assembly buildings.
• Hospitals, schools, universities, and government buildings.

Typical functions include:

• Emergency lighting and escape route lighting circuits.
• Fire alarm systems, smoke detectors, and audio evacuation systems.
• Smoke extraction fans, pressurization fans, and fire pump circuits.
• Building management systems and essential communications.

6.2 Transportation Infrastructure

• Metro and railway stations, tunnels, and rolling stock interiors (where permitted by rolling stock standards).
• Airports and seaports (terminals, control towers, baggage systems).
• Road tunnels, underpasses, and parking structures.

6.3 Industrial and Energy Facilities

• Power plants (conventional, renewable, nuclear) and substations.
• Oil and gas facilities, petrochemical plants, refineries (subject to specific hazardous area standards).
• Manufacturing plants, warehouses, and logistics centers.

In these sectors, LSZH fire-resistant cables are widely used for:

• Critical control and instrumentation loops.
• Emergency shutdown systems and emergency generators.
• Hazard alarm networks and monitoring systems.

6.4 ICT, Data Centers, and Telecom

• Server rooms and large data centers.
• Network operation centers and telecom exchanges.
• Co-location facilities and cloud infrastructure sites.

LSZH fire-resistant cables are used to:

• Supply emergency power to critical IT loads and UPS systems.
• Connect fire detection, suppression, and access control devices.
• Provide LSZH-jacketed fiber and copper data links in escape routes and dense cable trays.

6.5 Marine and Offshore

In marine, offshore, and shipboard environments, halogen-free cables are widely specified due to

the risk of rapid smoke accumulation and corrosive gas damage in confined spaces.

LSZH fire-resistant marine cables are used in:

• Passenger vessels, cruise ships, and ferries.
• Offshore platforms and floating production units.
• Naval vessels and specialized marine installations.

7. Technical Specifications and Comparison Tables

The specifications of LSZH fire-resistant cables vary depending on rated voltage, conductor section,

number of cores, armor type, and the targeted standard. The following tables illustrate typical values

and help specifiers compare LSZH fire-resistant designs to other common cable types.

7.1 Typical Electrical Ratings for LSZH Fire-Resistant Power Cables

7.2 Comparison: PVC vs LSZH vs LSZH Fire-Resistant

7.3 Typical Construction Data for a 600/1000 V LSZH Fire-Resistant Cable

The following table shows example dimensional and mechanical data for a multi-core copper LSZH

fire-resistant power cable. Actual values depend on manufacturer design and standards.

When working with manufacturers and exporters, project engineers request detailed technical datasheets

with exact dimensions, cable weight, current ratings, and fire performance documentation based on the

relevant standard.

8. Testing, Certification, and Quality Assurance

Quality-assured Low Smoke Zero Halogen fire-resistant cables undergo extensive laboratory testing and

ongoing quality control. Trusted manufacturers and exporters use established quality systems

to guarantee consistent performance across production lots.

8.1 Type Tests vs. Routine Tests

Testing typically falls into two main categories:

• Type Tests

  • Performed on representative cable designs.
  • Verify compliance with product standards (electrical, mechanical, fire performance).
  • Generally conducted at the development stage or after significant design changes.

• Routine and Sample Tests

  • Carried out on each production batch or selected drums.
  • Confirm that manufactured cables match the approved design and performance.
  • Include conductor resistance, insulation thickness, spark test, and sometimes sample fire tests.

8.2 Fire-Resistance Testing

Fire-resistance tests simulate real fire conditions and verify circuit integrity for a defined time.

Typical features include:

• Exposure to flames of specified temperature (e.g., 750–950 °C) for 30–120 minutes.
• Electrical load applied during the test to check continuity and insulation integrity.
• Optional mechanical shock and water spray, depending on the standard (e.g., BS 6387 Categories C, W, Z).

Test laboratories issue fire test reports and certificates confirming

that a specific cable design meets or exceeds the required fire survival criteria.

8.3 Smoke Density and Halogen Acid Gas Testing

To qualify as LSZH, cables must demonstrate:

• Low smoke density according to IEC 61034 or equivalent:

  • Measurement of light transmittance in a smoke chamber.
  • Higher transmittance indicates lower smoke generation.

• Low halogen acid gas emission per IEC 60754 or similar:

  • Determines acidity (pH) and conductivity of gases produced during combustion.
  • LSZH cables must fall within strict limits to protect people and equipment.

8.4 Quality Management and Third-Party Certification

Reputable LSZH cable manufacturers and exporters operate under rigorous quality management frameworks.

Typical practices include:

• Compliance with ISO 9001 quality management systems.
• Use of ISO 14001 or similar environmental management standards where relevant.
• Regular audits by third-party certification bodies and notified laboratories.
• Traceability of raw materials and finished products using batch coding and documentation.

Many global projects also require independent approvals and marks such as:

• Regional product approval marks for building and fire safety.
• Marine classification society approvals for shipboard LSZH fire-resistant cables.
• Specific transport and tunnel authority certifications.

9. Manufacturing Practices Used by Trusted LSZH Cable Manufacturers

The performance of Low Smoke Zero Halogen fire-resistant cables depends heavily on consistent, well-controlled

manufacturing processes. Trusted manufacturers and exporters typically implement the following

best practices:

9.1 Raw Material Selection and Control

• Use of certified halogen-free compound suppliers with documented formulations.
• Incoming inspection of copper, aluminum, LSZH compounds, fire-resistant tapes, and armouring materials.
• Verification of critical properties such as halogen content, thermal stability, and mechanical strength.

9.2 Conductor Manufacturing and Stranding

• Copper drawing and annealing to achieve specified conductivity and flexibility.
• Stranding of conductors according to IEC 60228 class requirements.
• Continuous monitoring of conductor diameter and resistance.

9.3 Application of Fire-Resistant Barriers

• Precision wrapping of mica tape or other fire barrier materials with controlled overlap.
• Automated lines to ensure uniform application along the cable length.
• In-process checks to confirm no gaps or discontinuities in fire barrier layers.

9.4 Insulation and Sheathing Extrusion

• Specialized extrusion lines configured for LSZH compounds with optimized temperatures and pressures.
• Continuous spark testing to detect insulation defects.
• On-line measurement of insulation and sheath thickness to meet minimum wall requirements.

9.5 Armouring and Final Assembly

• Application of steel wire or tape armour where specified.
• Uniform lay and coverage of armor for mechanical protection and, in some designs, EMC performance.
• Final LSZH outer sheath extrusion with controlled adhesion to underlying layers.

9.6 Routine Quality Tests on Finished Cables

• Conductor resistance and continuity tests.
• Insulation resistance and high-voltage withstand tests.
• Dimensional checks, marking verification, and drum labeling.
• Sample mechanical tests: bending, impact, abrasion, and cold flexibility (if required by standard).

9.7 Documentation for Export and Project Use

For international projects, exporters supply comprehensive documentation, such as:

• Detailed technical datasheets and catalog pages.
• Test certificates and classification reports (type tests, fire tests, LSZH tests).
• Certificates of conformity for applicable national or regional standards.
• Installation guidelines and storage recommendations.

10. How to Select the Right LSZH Fire-Resistant Cable

Proper selection of a Low Smoke Zero Halogen fire-resistant cable is critical for safety,

compliance, and long-term reliability. Specifiers, consultants, and contractors should follow

a structured approach, considering both technical and regulatory factors.

10.1 Define the Application and Function

• Identify whether the circuit is for power, control, signaling, or communication.
• Determine the importance of circuit continuity in case of fire (life-safety, property protection, process safety).
• Specify required fire survival duration (e.g., 30, 60, 90, 120 minutes) according to applicable codes.

10.2 Determine Electrical Requirements

• Rated voltage (e.g., 300/500 V, 450/750 V, 600/1000 V, or higher for medium-voltage applications).
• Conductor size based on current load, voltage drop, and short-circuit considerations.
• Number of cores, including neutral and protective earth arrangements.
• Maximum operating temperature and any derating factors due to ambient conditions.

10.3 Consider Mechanical and Environmental Conditions

• Indoor vs outdoor installation, exposure to sunlight, moisture, or chemicals.
• Buried installation, ducts, trays, or on-cable racks.
• Requirements for armor due to mechanical risks or rodent protection.
• Minimum bending radius, pulling tension, and flexibility requirements.

10.4 Check Fire Performance and LSZH Requirements

• Required fire-resistance standard and category (e.g., IEC 60331, EN 50200 PH90, BS 6387 CWZ).
• Required reaction-to-fire class (Euroclass B2ca, Cca, etc., if applicable).
• Mandatory LSZH compliance for smoke density and halogen acid gas emission (IEC 61034, IEC 60754).

10.5 Verify Compliance and Approvals

• Confirm that the selected cable design has valid type test reports and third-party certifications.
• Ensure cable markings clearly indicate fire-resistance and LSZH properties.
• Check that manufacturer and exporter can supply consistent quality for the full project volume.

10.6 Coordinate with Installation and Maintenance Teams

• Review installation guidelines, bending radius, and pulling methods for LSZH fire-resistant cables.
• Plan segregation in trays between emergency and non-emergency circuits.
• Ensure suitable terminations and accessories are available and compatible with LSZH materials.

10.7 Example Selection Matrix

11. Packaging, Export, and International Logistics Considerations

Since LSZH fire-resistant cables are often supplied to major infrastructure projects around the world,

export logistics and packaging are key elements of overall product quality.

11.1 Cable Packaging Methods

• Wooden drums (treated for international shipment as required):

  • Provide robust protection for long cable lengths.
  • Include labeling with cable type, size, length, gross weight, and handling instructions.

• Reels and coils for shorter lengths:

  • Used for smaller cross-sections and control cables.
  • Often wrapped in protective film or stretch wrap.

• Customized packaging where required:

  • Heat-shrink wrapping, moisture barriers, or palletization.
  • Special markings for tunnel or marine projects.

11.2 Export Documentation

Trusted LSZH cable exporters supply complete documentation sets, which may include:

• Commercial invoices and packing lists.
• Certificates of origin and compliance declarations.
• Inspection certificates from third-party agencies (if requested by buyer or authorities).
• Detailed test certificates and type test reports.

11.3 Handling, Storage, and Installation Considerations

• Drums should be stored upright on firm, level surfaces and secured against rolling.
• Protection from direct sunlight and severe weather preserves LSZH sheath performance during storage.
• LSZH fire-resistant cables should be pulled using suitable methods that avoid exceeding maximum tension.
• Installers should follow manufacturer’s recommended minimum bending radius to prevent damage to fire barriers and insulation.

12. Frequently Asked Questions About LSZH Fire-Resistant Cables

12.1 Are all LSZH cables automatically fire-resistant?

No. LSZH refers primarily to low smoke and zero halogen characteristics. A cable can

be LSZH and flame-retardant, limiting flame spread and smoke, but not necessarily maintain circuit

integrity under fire. For critical applications, specifiers must look specifically for

fire-resistant LSZH or fire-survival LSZH cables tested according to

standards like IEC 60331, EN 50200, or BS 6387.

12.2 How do LSZH fire-resistant cables differ from mineral insulated (MI) cables?

Mineral insulated (MI) cables use copper conductors inside a copper sheath surrounded by compacted

magnesium oxide insulation. They offer excellent fire-survival performance but can be more rigid and

complex to terminate. LSZH fire-resistant cables, by contrast, use polymeric LSZH insulation and

fire-resistant tapes, often providing greater flexibility and easier installation, while still

delivering certified fire-resistance.

12.3 Can LSZH fire-resistant cables be used outdoors?

Many LSZH fire-resistant cables are suitable for outdoor use if the LSZH sheath is formulated for

UV resistance and environmental exposure. Specifiers should confirm outdoor suitability, UV

resistance, and temperature range with the manufacturer’s datasheet. In demanding environments,

armored LSZH fire-resistant cables may be preferred for mechanical protection.

12.4 Do LSZH fire-resistant cables cost more than conventional cables?

LSZH fire-resistant cables are typically more expensive than general-purpose PVC cables because of

higher-performance materials, more complex construction, and rigorous testing. However, they often

deliver substantial value by reducing risk, enhancing life safety, protecting assets, and supporting

compliance with codes and standards. For many critical installations, LSZH fire-resistant cables are

considered a cost-effective long-term investment.

12.5 How can specifiers verify that a cable is truly LSZH and fire-resistant?

Specifiers should:

• Request formal test reports for smoke density (IEC 61034), halogen acid gas (IEC 60754), and fire resistance (IEC 60331 or equivalent).
• Check cable marking for references to LSZH and the relevant fire-resistance standard.
• Obtain declarations of conformity and certifications from accredited third-party laboratories.
• Confirm that the cable design and performance are fully described in technical datasheets.

12.6 Are LSZH fire-resistant cables compatible with standard accessories?

In many cases, standard cable glands, terminations, and accessories can be used, provided they are

appropriately rated for the cable dimensions, temperature class, and fire performance requirements.

For the highest fire integrity, specialized fire-rated glands, joints, and terminations are recommended.

Manufacturers typically provide guidance on compatible accessories.

12.7 Do LSZH fire-resistant cables support reeling and flexible applications?

Some LSZH fire-resistant cables are designed with flexible conductors and structures suitable for

limited movement or flexible installation. However, not all fire-resistant cables are intended for

repeated flexing or reeling. For such applications, designers must select cables that are specifically

rated and tested for dynamic use under fire-performance constraints.

13. Conclusion

Low Smoke Zero Halogen fire-resistant cables represent a critical technology for modern, safety-focused

construction and infrastructure. By combining:

• Low smoke emission for better visibility and reduced respiratory hazard,
• Zero halogen formulations for minimal toxic and corrosive gas release, and
• Certified fire resistance for maintained circuit integrity under fire,

LSZH fire-resistant cables enable designers and operators to meet stringent safety regulations while

protecting people, property, and essential systems.

Trusted manufacturers and exporters of LSZH fire-resistant cables follow rigorous standards, advanced

manufacturing techniques, and comprehensive testing regimes to ensure that their products are

quality-assured and fully documented for global use. When specifying LSZH

fire-resistant cables, engineers should focus on:

• Clear understanding of applicable standards and code requirements.
• Accurate definition of fire-resistance duration and reaction-to-fire performance.
• Verification of test reports, certifications, and quality management systems.
• Detailed alignment between cable design and real installation conditions.

By applying the information in this guide, specifiers, consultants, and contractors can confidently

select and implement Low Smoke Zero Halogen fire-resistant cable solutions that deliver high safety,

reliable performance, and strong regulatory compliance for critical projects worldwide.
