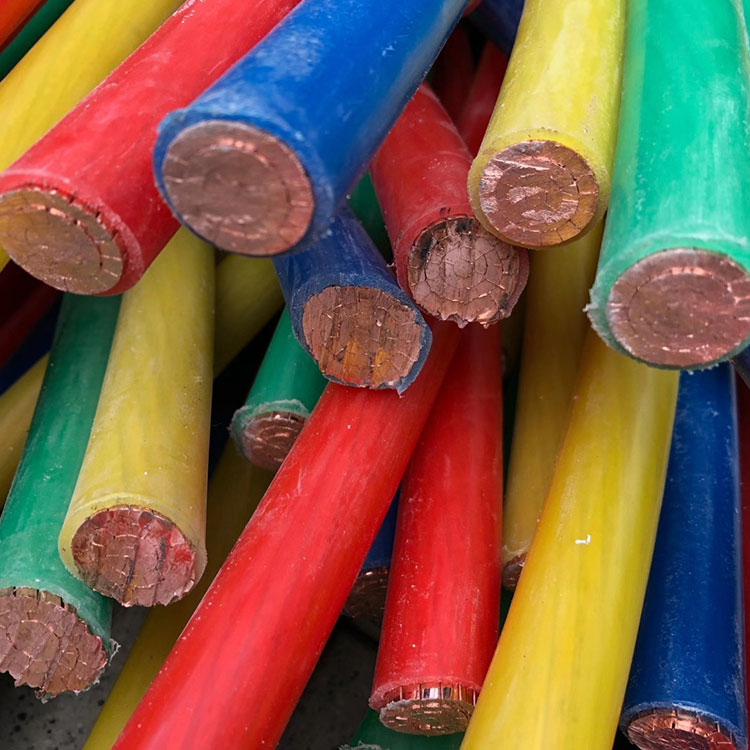

1. What Is an LSZH Flame Retardant Power Cable?

An LSZH flame retardant power cable is an electrical power cable designed with a special

low smoke, zero halogen (LSZH or LSOH) sheath and insulation, combined with

flame retardant properties that limit fire propagation.

LSZH materials emit very low levels of smoke and no corrosive halogen gases when exposed to fire,

significantly increasing safety in enclosed or high-occupancy environments.

In power distribution systems, LSZH flame retardant cables are typically used for:

• Low voltage power distribution in commercial and residential buildings
• Industrial power supply circuits with strict fire safety requirements
• Public infrastructure such as tunnels, airports, hospitals and rail systems
• Data centers, control rooms and critical IT facilities

Verified LSZH flame retardant power cable manufacturers, suppliers and exporters offer a wide range

of constructions and cross-sections that comply with regional and international standards such as

IEC, EN, BS, UL and other local regulations.

2. LSZH vs. PVC and LSF Power Cables

Conventional power cables often use PVC (polyvinyl chloride) for insulation and sheathing.

While PVC is cost-effective and widely available, it can release thick black smoke and corrosive halogen gases

(such as hydrogen chloride) during a fire. This can lead to:

• Reduced visibility for evacuation and firefighting
• Serious respiratory damage to occupants
• Corrosion of electronic equipment and structural components

In contrast, LSZH flame retardant power cables are engineered to:

• Produce very low levels of optical smoke density
• Release little or no halogen acid gases
• Limit flame spread along the cable bundle or cable tray
• Meet strict toxicity and corrosivity limits

2.1 Comparison Table: LSZH vs PVC vs LSF

For projects where human safety, asset protection and long-term reliability are priorities,

verified LSZH flame retardant power cable suppliers are typically favored over PVC or standard LSF options.

3. Key Features and Benefits of LSZH Flame Retardant Power Cables

Verified manufacturers and exporters of LSZH flame retardant power cables focus on features

that improve safety, durability and performance in demanding environments.

3.1 Primary Features

• Low Smoke Emission: Complies with IEC 61034 or equivalent smoke test standards.
• Zero Halogen: Meets IEC 60754 or similar halogen acid gas emission requirements.
• Flame Retardant: Designed to pass vertical or horizontal flame tests (e.g. IEC 60332 series).
• Thermal Stability: Able to operate continuously at rated temperatures (commonly 70 °C, 90 °C or higher depending on insulation material).
• Mechanical Strength: Resistant to abrasion, impact and installation stresses.
• Oil and Chemical Resistance: Depending on formulation, LSZH sheathing can offer good resistance to certain oils and chemicals.
• UV Resistance: For outdoor LSZH flame retardant power cable designs, UV-stabilized sheaths are available.

3.2 Main Benefits

• Enhanced Human Safety: Reduced smoke and toxic fumes significantly improve survivability

  during fire-related evacuations.

• Protection of Equipment: Lower corrosive gas levels help protect servers, electronic systems

  and metal structures from fire-related damage.

• Regulatory Compliance: Many building codes and industrial standards now encourage or

  require the use of LSZH flame retardant power cables in specific zones.

• Lower Life-Cycle Cost: While initial cost may be higher than PVC, the reduction in

  potential fire damage, downtime and equipment replacement can result in long-term savings.

• Improved Brand and Project Image: Using LSZH flame retardant solutions demonstrates

  commitment to safety and environmental responsibility.

4. Typical Construction of LSZH Flame Retardant Power Cables

LSZH flame retardant power cables come in many constructions, but verified manufacturers often follow

similar structural principles to ensure compatibility with standardized test methods and installation practices.

The specific construction used by a verified manufacturer or exporter will depend on voltage rating,

installation environment, mechanical demands and standardization within a given region.

5. Standards and Certifications for LSZH Flame Retardant Power Cables

To ensure consistent quality and safety, LSZH flame retardant power cables are tested and certified

according to well-known international and regional standards. Verified suppliers highlight these

certifications in their technical documentation to provide transparency to buyers.

5.1 Key International Standards

• IEC 60502 – Power cables with extruded insulation and their accessories for rated

  voltages from 1 kV up to 30 kV.

• IEC 60332 – Tests for electric and optical fibre cables under fire conditions

  (vertical flame propagation).

• IEC 61034 – Measurement of smoke density of cables burning under defined conditions.

• IEC 60754 – Test on gases evolved during combustion of materials from cables

  (halogen acid gas and pH/conductivity).

• IEC 60228 – Conductors of insulated cables.

5.2 European and Regional Standards

• EN 50575 – Power, control and communication cables: Construction products regulation (CPR)

  requirements and performance classes.

• BS 6724 – Thermosetting insulated, armoured and sheathed cables with LSZH sheathing

  for rated voltages up to and including 600/1000 V.

• BS 7211 – Electric cables. Thermosetting insulated, LSZH sheathed cables of rated

  voltages up to and including 450/750 V.

• UL/CSA Flame Tests – Such as UL 1581, VW-1, FT4, FT6 for North American markets.

5.3 Certification and Third-Party Testing

Verified LSZH flame retardant power cable manufacturers typically maintain some combination of the following:

• ISO 9001 quality management system certification
• ISO 14001 environmental management system certification
• ISO 45001 or OHSAS 18001 occupational health and safety certification
• Third-party type test reports from accredited laboratories
• CPR classification reports for European construction products
• National type approvals or product registration in specific markets

Buyers sourcing from international exporters should verify that documentation matches project location

requirements and that test reports are current.

6. Typical Technical Specifications for LSZH Flame Retardant Power Cables

The exact technical specifications depend on cable design, voltage rating and chosen standard.

The following tables summarize common parameters used by verified LSZH flame retardant power cable suppliers.

6.1 Common Voltage Ratings and Applications

6.2 Typical Conductor Sizes

6.3 Electrical and Thermal Characteristics (Typical)

Actual values vary by product and manufacturer, so detailed datasheets should always be consulted

for final cable selection.

7. Application Sectors for LSZH Flame Retardant Power Cables

LSZH flame retardant power cables are used across a wide spectrum of industries. Verified manufacturers

and exporters often specialize in one or more segments to meet specific regulatory and technical needs.

7.1 Building and Construction

• Commercial towers, shopping malls and office complexes
• Hospitals, schools, universities and public service buildings
• Residential high-rise projects and mixed-use developments

In these environments, LSZH flame retardant power cables are installed in risers, escape routes,

emergency circuits, fire alarm systems and essential service feeds.

7.2 Transportation and Infrastructure

• Railway stations, tunnels and metro systems
• Airports, seaports and logistics hubs
• Road tunnels and bridge infrastructure

Flame spread and smoke emission control are critical in transportation facilities due to high

passenger density and confined spaces.

7.3 Industrial and Energy

• Power plants and substations
• Oil and gas installations (where halogen-free requirements exist)
• Manufacturing plants with sensitive automation equipment

LSZH flame retardant power cables help protect process control systems and maintain operation during

emergency situations, depending on cable design and any additional fire resistance features.

7.4 Data Centers and ICT Facilities

• Cloud and co-location data centers
• Telecommunication hubs and switching centers
• Server rooms in corporate environments

Concentrated electronic equipment and high energy density make LSZH flame retardant power cables a

preferred solution, reducing risk to critical infrastructure and optimizing recovery after incidents.

8. Fire Performance Categories and Terminology

In addition to the basic designation of LSZH, many standards categorize flame retardant power cables

by their performance in specific fire tests. Verified suppliers carefully label products according to

these categories, enabling engineers to align cable selection with project requirements.

8.1 Common Fire-Performance Terms

• Flame Retardant: Cable designed to resist the propagation of fire along its length

  (single or bundled).

• Low Smoke: Cable that emits limited smoke during combustion, maintaining visibility.

• Zero Halogen: Cable whose materials emit negligible halogen acid gases when burned.

• Fire Resistant (Circuit Integrity): Cable able to maintain circuit integrity for a

  specified time under fire conditions (often tested to standards such as IEC 60331 or BS 6387).

  This is distinct from basic flame retardance.

8.2 Example of European CPR Classes (Informative)

Under the Construction Products Regulation (CPR) in Europe, power and control cables are classified

based on reaction-to-fire performance, including flame spread, smoke production and acidity.

Additional designations such as s1, s2 (smoke), d0, d1 (droplets)

and a1, a2 (acidity) further classify the fire behavior of LSZH flame retardant cables.

9. Quality Assurance among Verified LSZH Flame Retardant Power Cable Suppliers

For buyers in international markets, choosing verified manufacturers and exporters is essential

to ensure that LSZH flame retardant power cables meet declared performance levels. Quality assurance

measures typically include:

• Raw Material Control: Use of certified halogen-free flame retardant compounds,

  verified through incoming inspection and batch testing.

• Process Monitoring: Continuous control of extrusion temperature, line speed,

  cross-linking conditions and conductor preparation to ensure consistent cable structure.

• Routine Tests: Conductor resistance, insulation thickness, spark tests,

  partial discharge tests (for MV), dimensional checks and marking verification.

• Sample Type Tests: Fire tests (IEC 60332, IEC 61034, IEC 60754), thermal ageing,

  mechanical strength, voltage withstand and insulation resistance.

• Traceability: Unique batch or reel numbers printed on LSZH flame retardant power

  cables and documented in production records.

• Packaging and Handling: Proper drum labeling, moisture protection and handling

  instructions to avoid damage during transportation and storage.

Verified exporters often provide detailed test reports and certificates upon request, enabling

engineering teams to document compliance in project quality files.

10. Guidelines for Selecting LSZH Flame Retardant Power Cables

When specifying LSZH flame retardant power cables, decision-makers typically consider electrical,

mechanical and regulatory factors. A structured selection approach supports safe and cost-effective designs.

10.1 Key Selection Criteria

• Voltage Rating: Match cable voltage rating (e.g. 0.6/1 kV) to system voltage and

  insulation coordination requirements.

• Conductor Size and Material: Determine cross-section based on current-carrying capacity,

  voltage drop limits and short-circuit requirements; choose copper or aluminum depending on project needs.

• Fire Performance: Specify LSZH and flame retardant performance categories,

  including CPR class or equivalent national classification where applicable.

• Installation Environment: Consider indoor vs outdoor use, UV exposure,

  chemical environment, presence of rodents and mechanical protection needs.

• Routing Conditions: Single cable in conduit, grouped tray installation,

  buried in ducts or directly in ground with or without armour.

• Regulatory Framework: Verify compliance with local building codes,

  fire codes and power utility regulations.

• Documentation and Certification: Request product datasheets, test reports,

  conformity declarations and quality system certificates from the supplier.

10.2 Example Specification Checklist

11. Sourcing LSZH Flame Retardant Power Cables from Verified Manufacturers, Suppliers and Exporters

When purchasing LSZH flame retardant power cables for national or cross-border projects,

working with verified and reputable manufacturers, suppliers and exporters reduces risk

and ensures reliable delivery.

11.1 Verification Aspects

• Company Background: Assess years of experience, production capacity and

  track record in LSZH flame retardant power cable manufacturing.

• Standard Compliance: Confirm that the supplier produces cables according to

  relevant IEC, EN, BS, UL or national standards.

• Quality Management: Verify ISO certifications, internal test facilities

  and routine test procedures.

• Export Experience: Check documentation handling, packing practices and

  knowledge of import regulations for target markets.

• Technical Support: Evaluate the ability to provide engineering guidance,

  ampacity calculations and installation advice.

11.2 Documentation Commonly Requested from Exporters

• Product technical datasheets and catalogues
• Type test reports and routine test certificates
• Certificates of origin and conformity declarations
• Drawing and cable construction details if necessary
• Packing list, drum schedule and dispatch documents

Many international buyers also perform vendor audits or virtual factory tours to confirm actual

manufacturing capabilities for LSZH flame retardant power cables.

12. Installation and Maintenance Considerations

Proper installation of LSZH flame retardant power cables is essential to preserve

their electrical and fire performance characteristics. While detailed installation rules vary by region,

several general principles apply.

12.1 General Installation Guidelines

• Follow national wiring regulations and installation codes.
• Respect manufacturer-defined minimum bending radius for LSZH cables.
• Avoid mechanical damage, excessive pulling tension and crushing during laying.
• Use compatible glands, cleats, lugs and accessories rated for LSZH materials.
• Protect cables from direct sunlight unless rated with UV-resistant LSZH sheaths.

12.2 Maintenance and Inspection

• Conduct periodic visual inspection of cable routes, terminations and junction boxes.
• Check for signs of overheating, sheath damage or discoloration.
• Maintain updated single-line diagrams and cable schedules for troubleshooting.
• For critical circuits, consider periodic insulation resistance testing.

LSZH flame retardant power cables are designed for long service life, but their longevity

depends on correct selection, installation and environmental conditions.

13. Environmental and Regulatory Trends Driving LSZH Cable Adoption

Global attention to environmental sustainability and fire safety has increased the demand

for LSZH flame retardant power cables. Several trends support continued growth in this segment:

• Stricter Building Codes: Many jurisdictions now specify halogen-free, low smoke cables

  in escape routes, high-occupancy spaces and sensitive areas.

• Increased Awareness of Fire Toxicity: Real-world fire incidents have

  highlighted the role of cable materials in smoke toxicity and corrosion.

• Green Building Certifications: Sustainable building rating systems often

  encourage the use of environmentally friendly materials such as LSZH flame retardant power cables.

• Infrastructure Modernization: Upgrades to aging power and communication

  infrastructure frequently incorporate LSZH designs to enhance safety and reliability.

Verified manufacturers, suppliers and exporters continue to invest in research and development

to enhance the performance and cost-effectiveness of LSZH flame retardant power cables,

responding to these regulatory and market drivers.

14. Frequently Asked Questions about LSZH Flame Retardant Power Cables

14.1 Are LSZH flame retardant power cables always fire resistant?

No. LSZH flame retardant power cables are designed to limit flame spread and reduce smoke and halogen emissions,

but they do not automatically guarantee circuit integrity under fire.

Fire resistant cables are tested to separate standards and may include mica tapes or special fire barriers.

When specifying cables, it is important to distinguish between flame retardant and

fire resistant performance.

14.2 Do LSZH materials have different installation characteristics than PVC?

LSZH compounds can exhibit different flexibility, minimum installation temperature

and mechanical behavior compared to PVC. Installers should observe manufacturer guidelines for

bending radius, pulling tension and temperature limits, particularly in cold climates.

14.3 Are LSZH flame retardant power cables more expensive than traditional alternatives?

Typically, yes. The specialized halogen-free flame retardant compounds and stricter testing

requirements often increase initial product cost relative to standard PVC cables.

However, when considering total life-cycle cost, including potential fire damage and safety benefits,

many projects consider LSZH flame retardant solutions cost-effective.

14.4 Can LSZH cable be mixed with PVC cable in the same installation?

Technically possible, but not always recommended in areas with strict fire performance requirements.

Mixing LSZH and PVC cables can compromise the overall fire-safety profile of a bundle or tray.

Project specifications and fire engineering guidelines should be consulted before mixing cable types.

15. Conclusion

LSZH flame retardant power cables combine low smoke emission, zero halogen content and effective

flame retardance to deliver enhanced safety and reliability in modern power distribution systems.

Through compliance with recognized international standards and robust quality assurance programs,

verified manufacturers, suppliers and exporters provide a broad range of LSZH flame retardant

power cable solutions suitable for building, industrial, transportation, energy and ICT applications.

For engineering teams, specifiers and buyers, a clear understanding of LSZH definitions,

benefits, technical specifications and fire performance categories is essential when preparing

project documentation and procurement requirements. By prioritizing LSZH flame retardant

power cables and working closely with verified suppliers, stakeholders can significantly

improve fire safety, protect critical assets and support long-term operational resilience.
