Mine communication cable all-in-one solutions are critical infrastructure for modern mining operations.
They combine power, control, data, voice and monitoring functions into one integrated cable system designed
to perform reliably in harsh underground and open-pit mining environments. This comprehensive buying guide
is written for global buyers, procurement managers, engineers and project planners who need detailed,
SEO-friendly information to source mine communication cables from manufacturers, suppliers and exporters
around the world.
This page covers definitions, advantages, technical specifications, cable construction, classifications,
industry standards, quality control, packaging, documentation, and international sourcing strategies for
mine communication cable all-in-one products. It does not promote specific brands or companies; instead,
it focuses purely on industry-wide, vendor-neutral information that can be used for comparison,
tendering and engineering design.
A mine communication cable all-in-one is a composite cable designed specifically for
mining applications that integrates multiple functions within a single cable sheath.
Typical integrated functions include:
These cables are engineered for underground coal mines, metal mines, non‑metal mines,
tunnels and other heavy-duty, hazardous environments. They must withstand:
In many countries, mine communication cable all-in-one products are defined and regulated under
special flame-retardant, low-smoke, halogen-free and explosion-proof cable standards.
Buyers must understand both the electrical and environmental performance requirements before selecting
and ordering these cables from manufacturers, suppliers or exporters.
Using an integrated mine communication cable system offers several operational and economic advantages
compared with separate power, control and communication cables:
Mine communication cable all-in-one products can be classified in several ways: by function,
installation environment, voltage level and conductor material. Understanding these categories
helps buyers match cable type to specific mining projects.
Composite cables with three functional sections:
Used where digital communication is limited but many control and signal cores are needed.
Cables with armored fiber optic units specifically rated for mining environments.
Sometimes combined with low-voltage auxiliary power pairs.
Multi-core, shielded cables for sensors, valves, switches, gas detectors and automation devices.
Coaxial-type cables with controlled leakage, enabling radio communication along tunnels and roadways.
Flame-retardant, low-smoke, halogen-free; often explosion-proof (Ex) certified; resistant to methane and coal dust.
Focus on mechanical robustness, chemical resistance, and UV stability for open pits.
Similar to mine cables, but may follow rail or tunnel-specific standards.
Flexible, high-torsion cables designed for continuous winding on mining machines, shuttle cars and stackers.

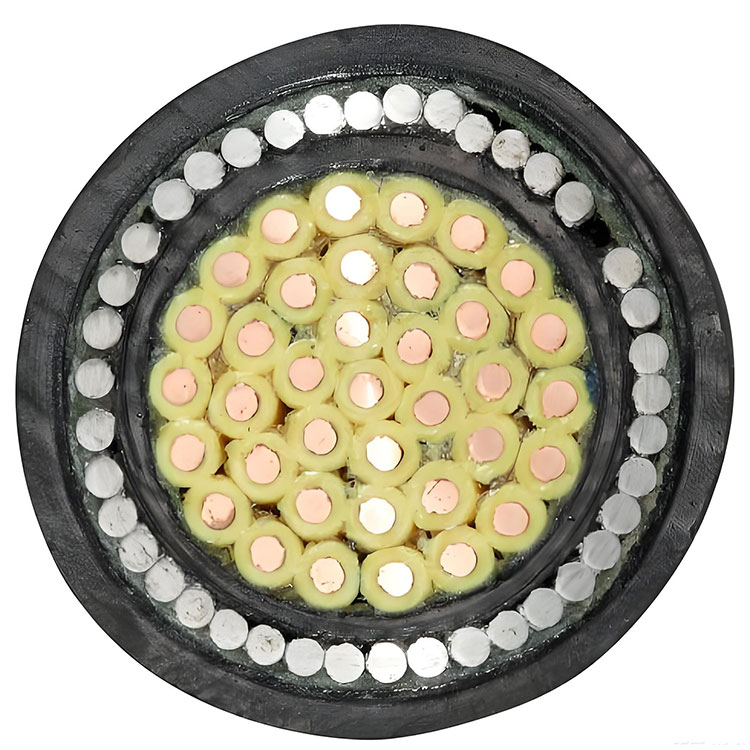

Although specific designs vary among manufacturers and projects, mine communication cable all-in-one
products usually share a similar multi-layer structure. The table below summarizes typical construction elements.
| Layer / Component | Description | Key Functions |
|---|---|---|
| Conductors | Annealed copper / tinned copper, class 2, 5 or 6 stranded | Power, control, communication and monitoring signal transmission |
| Insulation | PVC, XLPE, EPR or special halogen-free compounds | Electrical insulation, dielectric strength, temperature resistance |
| Core Identification | Color coding, numbering, printing | Easy installation and maintenance, clear circuit identification |
| Pair / Triple Formation | Twisted pairs or triads for communication and control | Noise reduction, stable impedance, improved signal transmission |
| Individual Shielding | Aluminum-polyester tape, copper tape or braid on pairs | EMI protection for sensitive signals, cross-talk control |
| Overall Cable Core Assembly | Layered or segmented assembly separating power and signal groups | Optimized layout to minimize interference and heat build-up |
| Filler and Bedding | Non-hygroscopic fillers, tapes, bedding layer | Round cable shape, mechanical stability, gap filling |
| Overall Shield / Screen | Copper braid or tape, sometimes steel tape under armor | EMC compliance, grounding, lightning and surge mitigation |
| Armor (if required) | Steel wire armor (SWA), steel tape armor (STA), galvanized wires | Mechanical protection against crush, impact and rodents |
| Inner Sheath | PVC or halogen-free thermoplastic, sometimes LSZH | Separation between armor and cores, moisture barrier |
| Outer Sheath / Jacket | Flame-retardant, halogen-free, UV and oil resistant compounds | Environmental protection, chemical resistance, fire performance |
| Optional Fiber Optic Unit | Loose tube or tight-buffered fibers, steel wire strength members | High-speed data, video, automation and monitoring communication |
When requesting quotations from mine communication cable manufacturers, suppliers and exporters,
buyers should specify key technical parameters. The following tables summarize typical data points
for an all-in-one mining communication cable system.
| Parameter | Typical Range / Value | Description |
|---|---|---|
| Rated Voltage (Power Cores) | 0.6/1 kV; 1.9/3.3 kV; 3.6/6 kV; 6/10 kV; 8.7/15 kV | Defines maximum operating voltage of power section |
| Rated Voltage (Control Cores) | 300/500 V or 450/750 V | For control and auxiliary power circuits |
| Rated Voltage (Communication Pairs) | < 100 V | For telecommunication and data signals |
| Conductor Cross-Section (Power) | 4 mm² – 240 mm² | Depends on load current and distance |
| Conductor Cross-Section (Control) | 0.75 mm² – 2.5 mm² | Common sizes for control and instrumentation circuits |
| Conductor Cross-Section (Comm.) | 0.5 mm² – 1.5 mm² or AWG equivalents | Determined by signal type and distance |
| Insulation Resistance | > 200 MΩ·km at 20 °C (typical) | Indicates insulation quality and dryness |
| Operating Temperature Range | -20 °C to +90 °C (depending on material) | Continuous operating range for conductor temperature |
| Minimum Bending Radius | 10–15 × overall diameter (fixed); 15–20 × OD (flexible) | Important for routing in confined spaces |
| Flame-Retardant Class | IEC 60332, EN 60332 or equivalent national class | Defines cable behavior under fire conditions |
| Smoke Density | IEC 61034 / low-smoke performance | For safe evacuation and visibility in fire |
| Halogen Content | Halogen-free compounds < specified limits | Reduced corrosive gases during burning |
| Shield Coverage | > 80% braid coverage (typical) | Ensures EMC performance and noise suppression |
| Armor Type | SWA, STA or galvanized wire armor | Selected according to mechanical risk |
| Parameter | Typical Value / Range | Notes |
|---|---|---|
| Characteristic Impedance | 100 Ω (twisted pair); 50 / 75 Ω (coaxial/leaky feeder) | Must match transmitting and receiving equipment |
| Capacitance (Pair) | 40–60 nF/km (typical) | Affects attenuation and signal integrity at high frequency |
| Attenuation at 1 MHz | Variable by design; lower is better | Critical for long-distance communication |
| Near-End Cross Talk (NEXT) | Compliant with relevant data cable standards | Important for high-speed networks |
| Optical Fiber Type (if any) | Single-mode (OS2) or multimode (OM2/OM3) | Selected according to required bandwidth and distance |
| Optical Attenuation | 0.35 dB/km @1310 nm (SM example) | Supplier should provide exact tested values |
Mine communication cable all-in-one products must comply with multiple international and national
standards. Buyers should always request detailed certifications and test reports from manufacturers,
suppliers and exporters when evaluating mining cable offers.
In many mining jurisdictions, cables must have dedicated explosion-proof and mining safety certifications.
Common examples include:
When sourcing mine communication cable all-in-one systems internationally,
ensure that the offered products have valid approvals for the target country or region
and that the certificates are traceable, up-to-date and issued by recognized bodies.
All-in-one mine communication cables are used in a wide range of mining and tunnel projects.
Key application areas include:
For global sourcing from mine communication cable manufacturers, suppliers and exporters,
a clear technical specification is essential. A typical specification document for tender or RFQ
should cover at least the following points:
Type of mine (coal, metal, non-metal), underground or surface, ambient conditions, explosive atmospheres.
Required power capacity, number of control circuits, communication interfaces, and any integrated fiber optics.
Voltage rating, current rating, fault level, system earthing, allowable voltage drop and backup times.
Installation type (fixed, flexible, reeling), minimum bending radius, tensile loads, water ingress, chemicals, temperature range.
Flame-retardant class, smoke emission, halogen-free requirements, explosion-proof approvals, mine safety certificates.
Required bandwidth, data rate, transmission distance, noise immunity, network topology (bus, ring, star).
Conductor material and class, insulation type, shielding, armor type, outer sheath material and color, overall diameter limits.
International and national standards to be followed, special mining codes and company specifications.
Routine tests, type tests, special tests, factory acceptance testing (FAT), test reports, certificates of conformity.
Drum type, drum material, drum size, maximum length per drum, export packaging, labeling and shipping markings.
High reliability is mandatory for mine communication cable all-in-one products due to the safety-critical
nature of mining operations. Buyers should evaluate quality control systems used by manufacturers,
suppliers and exporters, and request comprehensive test records.
Serious mine communication cable manufacturers typically operate under recognized quality management
systems (e.g., ISO 9001) and may also hold environmental (ISO 14001) and occupational health and safety
(ISO 45001) certifications. When evaluating suppliers and exporters, buyers should confirm:
Correct packaging and logistics planning are important to prevent damage to mine communication cables
during transportation and installation.
| Cable Size / Type | Typical Length Per Drum | Notes |
|---|---|---|
| Small control & communication cables | 500–1000 m | Depends on overall diameter and drum size |
| Medium composite mine communication cables | 300–800 m | Balance between weight and handling convenience |
| Large MV power + communication all-in-one cables | 100–500 m | Limited by drum capacity and installation method |
When searching for mine communication cable all-in-one solutions on global markets,
buyers may encounter many manufacturers, trading companies and integrated suppliers.
Careful evaluation is necessary to select the right partner.
The following aspects are worth comparing:
To optimize performance, safety and costs, buyers should avoid the following frequent mistakes when
specifying and purchasing mine communication cable all-in-one products:
Not accounting for moisture, chemicals, or mechanical abrasion can drastically shorten cable life.
Inadequate segregation and shielding between power and communication elements can cause noise and failure.
Importing cables without proper mine safety approvals can delay projects and create regulatory issues.
Over-specification increases cost, under-specification increases damage risk.
Not planning for future extensions or repairs can lead to costly shutdowns.
Missing test reports, drawings or installation instructions create challenges during audits and maintenance.
The following quick checklist can be used by engineers and procurement teams when finalizing specifications
and selecting mine communication cable manufacturers, suppliers and exporters:
| Item | Question | Verified (Yes/No) |
|---|---|---|
| 1 | Is the cable rated for the correct power and control voltages? | |
| 2 | Are the number and size of power, control and communication cores clearly defined? | |
| 3 | Does the cable meet required mining, flame-retardant, smoke and halogen standards? | |
| 4 | Are all necessary explosion-proof and mine safety certificates available? | |
| 5 | Have mechanical and environmental conditions (armor, sheath, temperature) been considered? | |
| 6 | Is the EMC design adequate (shielding, separation, grounding)? | |
| 7 | Are drum lengths, packaging and logistics aligned with site conditions? | |
| 8 | Has the manufacturer provided complete test reports and type-test certificates? | |
| 9 | Are pricing, payment terms and delivery times clearly defined in the quotation? | |
| 10 | Is technical support available during design, installation and commissioning? |
The mining industry is undergoing rapid technological change with the growth of automation,
remote operation and data-driven optimization. Mine communication cable all-in-one products
are evolving to support:
More projects combine high-voltage power cores with multi-fiber optic elements in a single cable.
Integration of temperature, strain and insulation condition monitoring within the cable itself.
Advanced halogen-free, low-smoke compounds offering better flexibility, oil resistance and longer life.
Use of modular cable designs to simplify global sourcing and reduce engineering time.
Pressure for recyclable materials, reduced environmental impact and lifecycle assessments of cable systems.
Mine communication cable all-in-one systems provide a compact, reliable and cost-effective solution
for integrating power, control, data and safety functions in mining environments.
When sourced correctly from qualified manufacturers, suppliers and exporters, these cables can significantly
improve mine safety, productivity and communication quality.
To select the right mine communication cable all-in-one product, buyers must carefully define
electrical performance, mechanical strength, environmental resistance, fire behavior and
communication requirements. They must also verify compliance with international and local mining standards,
evaluate production quality and choose appropriate packaging and logistics solutions.
This vendor-neutral buying guide is intended to support engineering design, procurement decisions,
tender preparation and technical comparison for mine communication cable all-in-one projects.
It can be used as a reference document for blogs, industry directories and mining cable knowledge bases
aimed at global audiences.
```
