RS 485 Bus Low-Voltage Circuit Shielded Most Trusted Manufacturers and Exporters Quality Assured



RS 485 Bus Low-Voltage Circuit Shielded – Trusted Manufacturers & Exporters | Complete Guide

RS 485 Bus Low-Voltage Circuit Shielded – Quality Assured Solutions from Trusted Manufacturers and Exporters

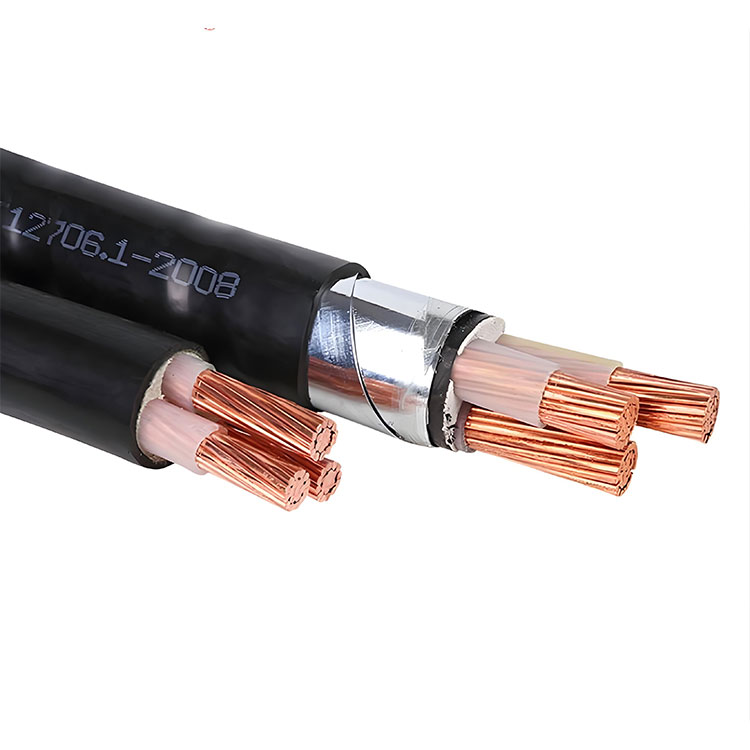

RS 485 bus low-voltage circuit shielded cabling is a core component of modern industrial communication, building automation,

and energy management systems. This in‑depth guide explains the definition, structure, technical parameters, shielding methods,

quality assurance practices, and export considerations that differentiate trusted manufacturers and exporters in the global

RS 485 market.

Table of Contents

  1. what-is-rs485">What Is RS 485 Bus Low-Voltage Circuit Shielded Cabling?
  2. key-features">Key Features of RS 485 Bus Low-Voltage Shielded Systems
  3. applications">Typical Applications and Use Cases
  4. shielding-basics">Shielding Basics for RS 485 Bus Cables
  5. construction">Cable Construction for Shielded RS 485 Low-Voltage Circuits
  6. electrical-specs">Core Electrical Specifications and Parameters
  7. mechanical-specs">Mechanical and Environmental Specifications
  8. standards">Relevant Standards and Compliance
  9. quality-assurance">Quality Assurance Practices of Trusted Manufacturers
  10. testing">Testing and Inspection for RS 485 Bus Shielded Cables
  11. export-considerations">Export Considerations for International Buyers
  12. selection-guide">Selection Guide: How to Specify RS 485 Shielded Cabling
  13. installation">Installation, Termination, and Grounding Practices
  14. faq">Frequently Asked Questions About RS 485 Bus Low-Voltage Shielded Cables

1. What Is RS 485 Bus Low-Voltage Circuit Shielded Cabling?

RS 485 is a balanced differential serial communication standard widely used for robust, noise-resistant data exchange

over long distances and in electrically harsh environments. An RS 485 bus low-voltage circuit shielded cable

is a specialized low-voltage, twisted-pair cable with an electromagnetic shield, designed specifically to carry RS 485

differential signals.

In this context:

  • RS 485 bus refers to a multi-drop network where multiple devices share the same differential pair.
  • Low-voltage circuit emphasizes that the cable is designed for signal-level voltages, not mains power.
  • Shielded indicates the presence of a conductive layer (foil, braid, or combination) around the twisted pairs

    for improved electromagnetic compatibility (EMC).

Trusted manufacturers and exporters of RS 485 bus low-voltage circuit shielded products focus on stable impedance, low

capacitance, controlled attenuation, and effective shielding performance to ensure reliable communication in demanding

industrial and commercial applications.

2. Key Features of RS 485 Bus Low-Voltage Shielded Systems

A shielded RS 485 bus low-voltage circuit is engineered for consistent data integrity and long-term reliability. The

following table summarizes the main features.

Key Features of RS 485 Bus Low-Voltage Circuit Shielded Cables
FeatureDescriptionTypical Benefit
Balanced differential pairTwo conductors carry opposite-polarity signals (A/B lines)High noise immunity and long-distance capability
Shielded constructionFoil, braid, or foil + braid surrounding the pair(s)Reduced EMI/RFI, better EMC performance
Twisted pairsConductors tightly twisted at controlled pitchMinimizes loop area and common-mode noise pick-up
Characteristic impedanceTypically 120 Ω (100–135 Ω range depending on design)Impedance matching for minimal reflections
Low capacitanceOptimized insulation materials and geometrySupports long cable lengths at higher baud rates
Low-voltage ratingCommonly 300 V or 150 V rated, signal-level useSafe operation in control and instrumentation circuits
Durable insulation and jacketPVC, PE, LSZH, PUR, or other polymersMechanical robustness and environmental resistance
Broad temperature rangeTypical: −20 °C to +80 °C (or wider)Suitable for industrial and outdoor applications
Multi-drop bus capabilitySupports multiple devices on a single busCost-effective wiring for distributed control systems

3. Typical Applications and Use Cases

Shielded RS 485 bus low-voltage circuit cabling is popular wherever reliable, interference-resistant serial communication

is required over moderate to long distances. Because the cable is shielded, it is especially suitable for installations

with significant electromagnetic noise.

3.1 Industrial Automation

  • Programmable logic controller (PLC) networks
  • Human-machine interface (HMI) communication
  • Remote I/O and distributed control systems
  • Factory instrumentation and sensor networks

3.2 Building Automation and HVAC

  • Building management systems (BMS)
  • Heating, ventilation, and air conditioning controls
  • Lighting control networks and dimming systems
  • Access control and security systems

3.3 Energy and Infrastructure

  • Smart metering and power monitoring
  • Solar and renewable energy monitoring systems
  • Substation automation and SCADA communication
  • Distributed generation control networks

3.4 Transportation and Logistics

  • Railway and rolling stock communication lines
  • Traffic control and signaling systems
  • Warehouse automation and conveyor control

3.5 Commercial and Other Applications

  • Point-of-sale systems using RS 485 interfaces
  • LED display and digital signage control
  • Environmental monitoring and data logging

4. Shielding Basics for RS 485 Bus Cables

Shielding is a crucial element in RS 485 bus low-voltage circuit design. A properly shielded cable reduces electromagnetic

interference (EMI), radio frequency interference (RFI), and crosstalk from adjacent circuits. Trusted manufacturers and

exporters pay close attention to shield materials, coverage, and grounding recommendations.

4.1 Types of Shielding

Common Shield Types for RS 485 Bus Low-Voltage Cables
Shield TypeDescriptionTypical Shield CoverageBest Use Cases
Aluminum foil shieldThin aluminum/polyester tape wrapped around conductorsUp to 100% coverageGeneral EMI/RFI protection, cost-effective, light-duty
Copper braid shieldInterwoven bare or tinned copper strands around coreTypically 70–95% coverageMechanical strength, low-resistance grounding, flexing
Foil + braid compositeFoil shield plus overlaid copper braidNear-complete coverage with low impedanceHigh EMI environments, industrial automation, drives
Individual pair shieldEach twisted pair individually foil-shieldedClose to 100% around each pairMulti-pair cables, reduced pair-to-pair crosstalk

4.2 Shielding and EMC Performance

The objective of shielding in an RS 485 bus low-voltage circuit is to:

  • Block external electromagnetic fields from coupling into the data pair.
  • Prevent internal signals from radiating outward and causing interference.
  • Provide a uniform reference plane for stable cable impedance.

Trusted manufacturers specify shield coverage percentages, transfer impedance, and recommended grounding schemes to

ensure that RS 485 bus low-voltage circuit shielded solutions meet EMC regulations such as IEC, EN, and regional

directives.

5. Cable Construction for Shielded RS 485 Low-Voltage Circuits

The internal construction of an RS 485 bus low-voltage circuit shielded cable strongly influences performance, durability,

and ease of installation. The following elements are usually optimized by quality-focused manufacturers.

5.1 Conductor Materials and Sizes

  • Material: Bare copper or tinned copper is typical for low-voltage signal cables.
  • Conductor Class: Solid or stranded according to IEC or ASTM conductor classes.
  • Cross-sectional Area: Common sizes include 22 AWG, 24 AWG, and 20 AWG depending on run length and

    mechanical needs.

5.2 Insulation

Insulation material for each conductor affects dielectric properties, capacitance, and temperature range.

Typical Insulation Materials for RS 485 Low-Voltage Circuit Cables
MaterialAdvantagesTypical Applications
PVC (Polyvinyl Chloride)Cost-effective, flexible, easy to stripGeneral indoor industrial and commercial wiring
PE (Polyethylene)Low dielectric constant, low capacitanceLong-distance, higher-speed RS 485 links
Foamed PEEven lower capacitance and weightSpecialized high-performance signal lines
XLPE (Cross-linked Polyethylene)Improved thermal and mechanical stabilityHarsh environments, elevated temperatures
LSZH compoundsLow smoke, zero halogen emissionsPublic buildings, tunnels, transport systems

5.3 Twisting and Pairing

RS 485 bus cables rely on precisely twisted pairs to maintain consistent impedance and noise rejection. Trusted

manufacturers control:

  • Twist lay length (pitch) for each pair.
  • Pair lay direction and grouping in multi-pair designs.
  • Uniformity of twisting through the cable length.

5.4 Shields, Drain Wire, and Separator

  • Drain wire: Bare or tinned copper conductor in contact with foil shield for easy grounding.
  • Separator tapes: Polyester or non-woven tapes used between core and shield or jacket for smooth

    stripping, flexibility, and mechanical protection.

  • Overall vs. individual shields: Designs may include one overall shield, or individual shields plus

    an overall shield in multi-pair cables.

5.5 Outer Jacket

The outer jacket protects the internal low-voltage circuit from mechanical damage, moisture, oils, and chemicals. Typical

materials include:

  • PVC: Standard jacket for indoor and light industrial usage.
  • LSZH: Low smoke zero halogen for safety-critical buildings.
  • PE: For outdoor and underground conduits with good moisture resistance.
  • PUR (Polyurethane): High abrasion resistance and flexibility for drag chains and robotic systems.

6. Core Electrical Specifications and Parameters

For RS 485 bus low-voltage circuit shielded cables, electrical parameters are precisely controlled to meet system

performance targets. The following table summarizes key electrical characteristics commonly specified by reliable

manufacturers.

Typical Electrical Specifications for Shielded RS 485 Low-Voltage Cables
ParameterTypical Value / RangeNotes
Characteristic impedance (Z0)120 Ω ± 10% (or 100–135 Ω depending on design)Must match RS 485 transceiver and termination resistors
Capacitance (conductor-to-conductor)30–60 pF/m (9–18 pF/ft) typicalLower capacitance supports higher data rates and longer runs
Capacitance (conductor-to-shield)40–110 pF/m typicalImpacts common-mode behavior and EMC
Conductor resistance (20 °C)Varies by AWG (e.g., ~39 Ω/km for 22 AWG)Affects voltage drop and maximum bus length
Insulation resistance> 500 MΩ·km (or per IEC standard)Ensures minimal leakage between conductors
Voltage ratingOften 300 V for control circuits; some rated 150 VLow-voltage circuit insulation rating, not mains power
Test voltage1.0–2.0 kV AC for 1 minute (typical)Dielectric withstand test between conductor and shield
Maximum data rateUp to 10 Mbps over short runs; 9.6–115.2 kbps over longDepends on cable length, capacitance, and installation quality

Trusted RS 485 cable manufacturers provide detailed electrical data sheets, including frequency-dependent attenuation,

near-end crosstalk (NEXT), and return loss curves, for system integrators who design complex bus architectures.

7. Mechanical and Environmental Specifications

RS 485 bus low-voltage circuit shielded cables must tolerate mechanical stress and environmental influences in real

installations. The following table lists common mechanical and environmental parameters.

Typical Mechanical and Environmental Parameters
ParameterTypical Range / ValueNotes
Operating temperature range−20 °C to +70 °C / −40 °C to +80 °CDepends on insulation and jacket materials
Installation temperature0 °C to +50 °CMinimum recommended temperature during laying
Bend radius (fixed)4–10 × outer diameterSmaller radius for flexible designs
Bend radius (flexing)10–15 × outer diameterFor drag chain or moving applications
Flame retardanceIEC 60332-1 or equivalentSpecifies flame propagation characteristics
Oil resistanceOptional per DIN or UL standardsFor industrial machinery and factory floors
UV resistanceAvailable in UV-stabilized jacketsFor outdoor or rooftop RS 485 installations
Water resistanceIndoor, outdoor, or direct burial typesSpecifically designed jackets and fillers

8. Relevant Standards and Compliance

Although RS 485 itself is an electronic interface standard, RS 485 bus low-voltage circuit shielded cables are usually

designed to comply with a variety of international cable, safety, and EMC standards. High-quality manufacturers align

their products with recognized norms to support global usage.

8.1 RS 485 Interface Standard

  • EIA/TIA-485 or TIA-485-A: Defines the electrical characteristics of the RS 485 differential bus.

8.2 Cable and Safety Standards

  • IEC 60228: Conductors of insulated cables.
  • IEC 60332: Tests on electric cables under fire conditions (flame retardance).
  • IEC 60502, IEC 60754, IEC 61034: For particular cable families and LSZH performance.
  • UL / CSA styles: For North American safety listing (e.g., CM, CMG, CL2, PLTC where applicable).

8.3 EMC and Performance-Related Standards

  • IEC 61000 series: Electromagnetic compatibility testing and limits.
  • EN 50288 / EN 50173 (where similar construction): Symmetrical cables for digital communications.

Trusted manufacturers and exporters typically provide certification documentation, test reports, and declarations of

conformity to simplify approval processes in the destination market.

9. Quality Assurance Practices of Trusted Manufacturers

Quality assurance is central to the reputation of RS 485 bus low-voltage circuit shielded cable manufacturers and

exporters. Leading producers implement stringent process controls and quality management systems.

9.1 Quality Management Systems

  • Implementation of ISO 9001 or equivalent quality management framework.
  • Documented procedures for design, material selection, production, and testing.
  • Traceability from raw material batches to finished cable reels.

9.2 Raw Material Control

  • Incoming inspection of copper, polymers, shielding tapes, braids, and additives.
  • Verification of conductor purity, tensile strength, and elongation.
  • Quality checks for flame-retardant and LSZH compound properties.

9.3 Process Control

Critical process steps for RS 485 bus low-voltage circuit shielded cables include:

  • Wire drawing and annealing for consistent conductor dimensions.
  • Precision extrusion of insulation layer with constant thickness.
  • Controlled twisting of pairs with unified lay length.
  • Accurate shield application to achieve required coverage.
  • Consistent outer jacket extrusion and printing.

9.4 Final Product Quality Assurance

  • Routine electrical testing (impedance, capacitance, resistance).
  • Mechanical tests (tensile strength, elongation, bending).
  • Fire, smoke, and toxicity tests for LSZH and flame-retardant types.
  • Visual inspection for uniformity, surface defects, and marking accuracy.

Export-oriented manufacturers additionally align quality documentation with customer and regulatory requirements in

each target market, including detailed test certificates and compliance statements for RS 485 bus low-voltage shielded

cables.

10. Testing and Inspection for RS 485 Bus Shielded Cables

Comprehensive testing ensures that RS 485 bus low-voltage circuit shielded cables meet the expectations of system

designers and integrators. The testing program typically includes type tests, routine production tests, and special

customer-requested tests.

10.1 Electrical Tests

Key Electrical Tests for Shielded RS 485 Cables
TestPurposeTypical Method / Standard
Conductor resistanceVerify copper cross-section and material qualityMeasured per unit length at 20 °C
Insulation resistanceCheck insulation integrity between conductorsMeasured with megohmmeter at rated voltage
High-voltage withstand (dielectric test)Confirm insulation withstands specified test voltageAC or DC test per IEC or UL standards
Characteristic impedanceEnsure correct cable impedance for RS 485Time domain reflectometry (TDR) or network analyzer
CapacitanceEvaluate signal loading and bandwidth capabilityLCR meter, usually at 1 kHz or other standard
Attenuation vs. frequencyCharacterize signal loss over distanceNetwork analyzer or dedicated test set
Crosstalk (for multi-pair)Determine pair-to-pair coupling levelsNear-end and far-end crosstalk measurements

10.2 Mechanical and Environmental Tests

  • Tensile and elongation tests on conductor and insulation.
  • Bending and flex-life tests for flexible applications.
  • Temperature cycling to examine performance across temperature ranges.
  • Flame spread and smoke density tests for safety compliance.

10.3 Documentation and Traceability

Trusted manufacturers and exporters provide:

  • Inspection reports per batch or production lot.
  • Test certificates for specific orders of RS 485 bus low-voltage circuit shielded cables.
  • Labeling with batch codes and production dates for field traceability.

11. Export Considerations for International Buyers

When sourcing RS 485 bus low-voltage circuit shielded cables from overseas manufacturers and exporters, buyers should

consider logistics, regulatory alignment, and technical compatibility with local practices.

11.1 Regulatory Alignment

  • Ensure cables meet local safety and EMC regulations in the destination country.
  • Confirm recognition by local certification bodies where required.
  • Verify RoHS / REACH or similar environmental compliance where applicable.

11.2 Technical Compatibility

  • Match RS 485 bus impedance, conductor size, and insulation rating to local standards.
  • Check compatibility with connectors and termination hardware used in the region.
  • Align marking language, color codes, and identification with local norms.

11.3 Packaging and Logistics

  • Selection of drum, reel, or coil packaging for transport efficiency.
  • Proper labeling with length, cable type, RS 485 bus indication, and shield configuration.
  • Moisture and mechanical protection during sea or air freight transit.

11.4 After-Sales and Technical Support

  • Availability of datasheets, installation guides, and RS 485 grounding recommendations.
  • Responsiveness to technical queries and custom design requirements.
  • Warranty terms covering manufacturing defects and performance specifications.

12. Selection Guide: How to Specify RS 485 Shielded Cabling

Properly specifying an RS 485 bus low-voltage circuit shielded cable ensures long-term reliability and system

compatibility. The following checklist can be used when preparing purchase specifications or technical inquiries

for manufacturers and exporters.

12.1 Basic Electrical Requirements

  • Required characteristic impedance (typically 120 Ω).
  • Maximum bus length and desired data rate.
  • Allowed line capacitance and total load of connected transceivers.
  • Nominal system voltage and insulation rating for the low-voltage circuit.

12.2 Mechanical and Environmental Requirements

  • Indoor, outdoor, or underground installation environment.
  • Fixed, flexible, or continuous flex (drag chain) operation.
  • Required temperature range, UV resistance, and oil/chemical resistance.
  • Need for flame retardant or LSZH jacket for safety-critical sites.

12.3 Shielding and EMC Requirements

  • Foil-only, braid-only, or foil + braid composite shielding.
  • Individual pair shielding vs. overall shielding for multi-pair designs.
  • Presence of drain wire for convenient shield termination.
  • Grounding scheme at one or multiple points according to EMC strategy.

12.4 Construction Choices

  • Number of pairs (e.g., 1-pair, 2-pair, 4-pair) for multiple RS 485 channels.
  • Conductor size (AWG or mm²) based on distance and voltage drop.
  • Insulation and jacket materials compatible with installation conditions.
  • Color coding and surface marking requirements.

12.5 Example Specification Table

Example Technical Specification Template for RS 485 Bus Low-Voltage Circuit Shielded Cable
ParameterRequested ValueNotes
Cable typeRS 485 bus low-voltage circuit, shielded twisted pairFor industrial automation network
Number of pairs1 pair / 2 pairs / 4 pairsAccording to project needs
Conductor size24 AWG (0.25 mm²) stranded tinned copperStranded for flexibility
InsulationPE or foamed PELow capacitance design
Characteristic impedance120 Ω ± 10% at 1 MHzMatching RS 485 standard
ShieldAl/PET foil + tinned copper braid, >85% coverageWith tinned copper drain wire
JacketLSZH, color: greyCompliant with local fire regulations
Voltage rating300 VLow-voltage control circuits
Operating temperature−20 °C to +80 °CFor indoor/outdoor ducts
Standards complianceRS 485, IEC 60332-1, RoHS compliantOr local equivalents

13. Installation, Termination, and Grounding Practices

Even with high-quality RS 485 bus low-voltage circuit shielded cables, proper installation is essential. Trusted

manufacturers and exporters often provide guidelines that cover routing, termination, and grounding to help ensure

stable bus performance.

13.1 Cable Routing

  • Route RS 485 bus cables away from high-voltage power lines when possible.
  • Maintain separation from large motors, drives, and transformers to reduce EMI.
  • Use metallic conduits or trays where additional shielding is needed.

13.2 Termination and Impedance Matching

  • Use termination resistors equal to cable impedance (typically 120 Ω) at both ends of the bus.
  • Avoid unnecessary stubs and maintain daisy-chain topology for best signal integrity.
  • Ensure consistent polarity of A and B lines throughout the network.

13.3 Shield Grounding

Effective use of the shield in a low-voltage RS 485 bus circuit requires careful grounding strategy:

  • Ground the shield at least at one point, usually on the control panel side.
  • In some EMC designs, grounding the shield at multiple points can be beneficial if potential differences are controlled.
  • Use the drain wire for convenient, low-impedance connection to earth.

13.4 Termination Hardware

  • Select connectors designed for shielded cables to maintain 360° shield continuity.
  • Ensure the shield is properly clamped or bonded at entry glands, junction boxes, and devices.
  • Follow torque specifications for screw terminals to avoid conductor damage.

14. Frequently Asked Questions About RS 485 Bus Low-Voltage Shielded Cables

14.1 Why use shielded RS 485 bus cables instead of unshielded types?

Shielded RS 485 bus low-voltage circuit cables provide significantly better EMC performance, reducing the risk of

communication errors in noisy environments. Shielding is particularly valuable near variable frequency drives,

power cables, and radio transmitters.

14.2 What is the maximum length of an RS 485 bus cable?

The practical maximum length depends on data rate, cable design, and installation quality. With typical shielded

RS 485 bus low-voltage cables (120 Ω, low capacitance), lengths up to 1200 m are commonly achievable at lower

baud rates (e.g., 9.6 kbps). Higher data rates require shorter distances.

14.3 Does shield type affect RS 485 signal quality?

Yes. Foil shields are excellent at high-frequency EMI, while braid shields provide lower resistance paths to

ground and better mechanical durability. Composite foil + braid shields offer superior overall performance for

demanding industrial RS 485 bus low-voltage circuits.

14.4 Can RS 485 bus cables be used outdoors?

Many RS 485 bus low-voltage circuit shielded cables are suitable for outdoor use when equipped with UV-stable and

weather-resistant jackets. For direct burial, specific construction with moisture protection is required. Always

check the manufacturer’s datasheet.

14.5 Are LSZH jackets necessary?

LSZH (low smoke zero halogen) jackets are recommended in closed public areas, buildings, tunnels, and transportation

systems where fire safety and low smoke toxicity are critical. For purely industrial open areas, standard flame

retardant jackets may be sufficient.

14.6 How do trusted exporters support custom RS 485 designs?

Reliable RS 485 bus low-voltage circuit shielded cable exporters often provide customization services, such as

specific conductor sizes, unique color coding, private labeling, special shielding configurations, and tailored

jackets to match local standards and branding requirements.

Conclusion

RS 485 bus low-voltage circuit shielded cables are a critical foundation for robust industrial, commercial, and

infrastructure communication networks. By understanding cable construction, shielding options, electrical

specifications, testing methods, and quality assurance practices, buyers and system integrators can confidently

cooperate with trusted manufacturers and exporters to source reliable, long-lasting RS 485 cabling solutions

optimized for their specific applications.

```

联系我们

  • Shihuaitun Village, Jinghe Town, Hejian City, Cangzhou City, Hebei Province

  • 郭@fbscable.com

  • +86 15803271881

跟着我们

版权所有 © 2025 河北福博斯电线电缆有限公司

网站地图

本网站使用 cookie 来确保您在我们的网站上获得最佳体验。

接受 拒绝
