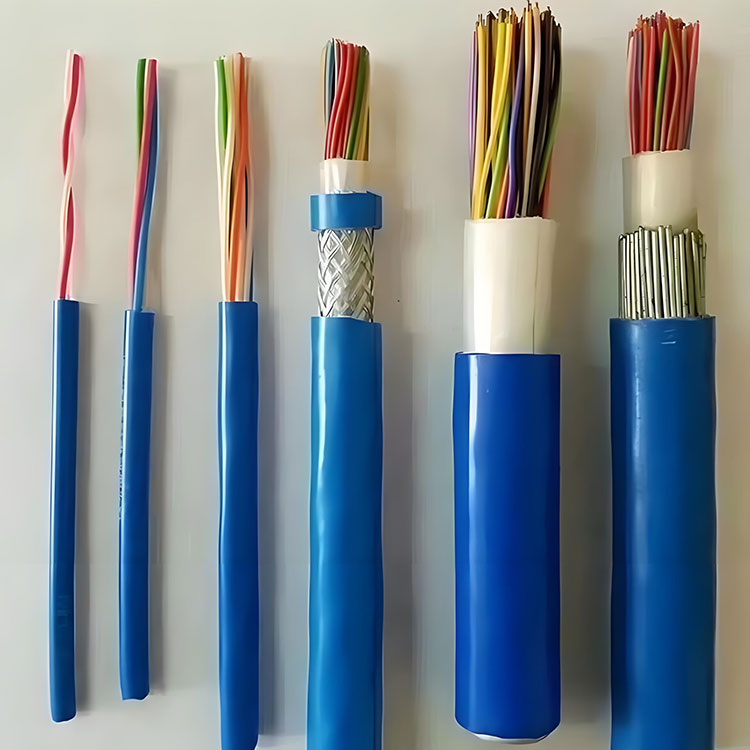

1. What Is Shielded Communication Cable?

A shielded communication cable is a multi‑conductor or twisted‑pair cable that includes one

or more conductive shielding layers around the signal cores. The shield is typically made of

aluminum/polyester foil, copper braid, or a combination of both, and is

designed to reduce electromagnetic interference (EMI) and radio‑frequency interference (RFI) while controlling

crosstalk between pairs.

Shielded communication cables are widely used in:

• Industrial automation and process control
• Building management and security systems
• Instrumentation and measurement systems
• Low‑voltage data and signal transmission
• Telecommunication and backbone cabling
• Audio, broadcast and studio environments

Compared with unshielded communication cable, shielded versions provide higher signal integrity in harsh

electrical environments, making them a preferred choice for factories, plants, transport infrastructure,

medical facilities and mission‑critical communication networks.

2. Key Advantages of Shielded Communication Cable

When buyers evaluate shielded communication cable from global manufacturers, suppliers and exporters, they are

typically looking for a combination of electrical performance, mechanical robustness and long‑term reliability.

The main advantages of shielded communication cable include:

2.1 Superior Noise Immunity

• Reduced influence from power cables, motors, inverters, drives and high‑frequency devices.
• Better performance in high‑EMI / high‑RFI industrial and commercial environments.
• Lower bit error rates in digital communication links.

2.2 Enhanced Signal Integrity

• Minimized crosstalk between adjacent pairs in multi‑pair constructions.
• Improved bandwidth, attenuation and return loss characteristics.
• Stable performance over longer transmission distances.

2.3 Improved EMC Compliance

• Easier compliance with electromagnetic compatibility (EMC) directives and regional

  regulations.

• Reduced emitted noise from signal cables, protecting nearby sensitive electronics.

2.4 Higher Reliability and Uptime

• Fewer communication errors and retries, supporting real‑time control systems.
• Lower maintenance, troubleshooting and downtime costs over the cable lifetime.

2.5 Robustness in Harsh Environments

• Available with chemical, oil, UV, flame and weather resistant jackets.
• Options for armoring, rodent protection and mechanical impact resistance.

3. Shielded Communication Cable Construction & Components

Understanding the internal construction of a shielded communication cable helps engineering teams and buyers

compare offerings from different manufacturers, suppliers and exporters. Although designs differ, most

shielded communication cables share the following elements:

3.1 Conductor

• Material: Bare copper (BC), tinned copper (TC), or sometimes copper‑clad aluminum (CCA) for

  cost‑sensitive, non‑critical applications.

• Structure: Solid conductor for fixed installation or stranded conductor

  for flexible, dynamic applications.

• Sizes: Often 18–24 AWG for control and instrumentation; 22–26 AWG for data and signal.

3.2 Insulation

• Materials: PVC, PE, XLPE, PP, FEP, or low‑smoke zero‑halogen (LSZH / LSOH).
• Color‑coding: Standard or project‑specific coding to identify cores and pairs.
• Electrical properties: Dielectric constant, insulation resistance and rated voltage are

  important selection criteria.

3.3 Pairing and Cabling

Communication cables often consist of twisted pairs (TP) or triads:

• Twisted Pair: Two insulated conductors twisted together to reduce electromagnetic

  coupling.

• Lay length: Shorter lay lengths offer better noise rejection but may increase cost and

  stiffness.

• Multi‑pair cabling: Multiple pairs assembled in layers or bundles for complex systems.

3.4 Shield Types

Shield design is a core differentiator between communication cable families:

• Foil Shield (Tape): Aluminum/polyester tape wrapped around each pair (individual pair

  shield) or around the entire core (overall shield). Provides 100% coverage and excellent high‑frequency

  noise rejection.

• Braid Shield: Copper wires braided over the core. Offers mechanical robustness, low

  transfer impedance and better low‑frequency noise rejection.

• Combined Foil + Braid: Used in demanding applications where both high‑ and low‑frequency

  noise must be controlled.

• Drain Wire: Bare or tinned copper wire used to facilitate reliable shield grounding.

3.5 Separator / Filler

• Filler: Non‑hygroscopic fibers or rods used to achieve a round and stable cable geometry.
• Separator tape: Applied between shield and jacket for easier stripping and termination.

3.6 Outer Jacket

• Common materials: PVC, LSZH, PE, PUR, TPE and other special compounds.
• Functions: Mechanical protection, environmental resistance, chemical and UV protection,

  flame retardancy.

• Color: May indicate application (e.g. violet for industrial fieldbus, blue for data, green

  for PROFINET®, etc., depending on system conventions).

4. Common Types of Shielded Communication Cable

Manufacturers, suppliers and exporters offer shielded communication cables in many configurations. Naming

conventions vary between regions, but several broad families are widely recognized.

4.1 Shielded Twisted Pair (STP, FTP, S/FTP)

• STP (Shielded Twisted Pair): Pairs or cable core are surrounded by a metallic shield.
• FTP (Foiled Twisted Pair): Each pair or overall core shielded with foil.
• S/FTP: Individual foiled pairs plus overall braid shield for enhanced EMC.
• Applications: Ethernet, data centers, building backbone, industrial networking.

4.2 Shielded Instrumentation & Control Cable

• Typically multi‑pair constructions with individual and/or overall shields.
• Used for analog and digital instrument signals, DCS/PLC I/O and field measurement devices.
• Available with PVC, XLPE or PE insulation and PVC, PE or LSZH jackets.

4.3 Fieldbus and Industrial Network Cable

• Specialized shielded cable types for PROFIBUS, PROFINET, Modbus, CAN, DeviceNet, CC‑Link, etc.
• Often have characteristic impedance controlled to system requirements (e.g. 100 Ω, 120 Ω, 150 Ω).
• Enhanced oil, chemical and mechanical resistance for industrial use.

4.4 Audio, Broadcast and Security Communication Cable

• Balanced audio cable (microphone, line level) with foil or braid shield.
• Intercom and PA system communication lines.
• Alarm, access control and CCTV control signal cables with shielding against interference.

4.5 Telecommunication and Backbone Cable

• Multi‑pair copper communication cables with pair shielding for long‑distance telephony and signaling.
• Used in central offices, exchanges, campus backbones and external networks.

5. Typical Applications by Industry

When evaluating shielded communication cable offers from international manufacturers, suppliers and exporters,

end‑users often specify sector‑specific requirements. The following table summarizes typical applications:

6. International Standards & Compliance

Shielded communication cable manufacturers, suppliers and exporters must comply with a range of global and

regional standards. Buyers should verify conformity and available third‑party certifications.

6.1 Electrical and Performance Standards

• IEC 60228: Conductors of insulated cables.
• IEC 60502 / IEC 60332: Power cables and flame tests (often referenced in communication cable

  designs).

• IEC 61156 series: Balanced communication cables for digital communication (e.g. LAN cables).
• ISO/IEC 11801: Generic cabling for customer premises.
• EN 50288 series: Multi‑element metallic cables used in analogue and digital communication

  and control.

6.2 Fire & Safety Regulations

• IEC 60332‑1 / IEC 60332‑3: Tests for flame propagation on cables.
• IEC 60754: Halogen acid gas emission tests.
• IEC 61034: Smoke density tests.
• EU CPR (Construction Products Regulation): Reaction to fire classification for building

  cables (e.g. Eca, Dca, Cca, B2ca).

6.3 Environmental & Material Compliance

• RoHS: Restriction of hazardous substances in electrical equipment.
• REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals.
• Halogen‑free / LSZH: Low smoke zero halogen jacket and insulation compounds for public

  buildings and infrastructure.

6.4 Additional Approvals

• UL / cUL / CSA: North American safety approvals.
• Marine Approvals: DNV, ABS, BV, LR for shipboard and offshore installations.
• Rail Standards: EN 45545 for fire protection on railway vehicles (for relevant cables).

7. Typical Technical Specifications of Shielded Communication Cable

Selecting the right shielded communication cable requires a clear understanding of key electrical and mechanical

specifications. These parameters appear on data sheets provided by cable manufacturers, suppliers and exporters.

8. How to Select Shielded Communication Cable for Your Project

Engineering teams, project managers and procurement specialists can use the following step‑by‑step approach

when comparing shielded communication cable offers from different manufacturers, suppliers and exporters.

8.1 Define the Communication System

• Protocol and interface (e.g. Ethernet, RS‑485, CAN‑Bus, analog 4–20 mA, digital I/O).
• Required bandwidth, data rate and maximum cable length.
• Topology (point‑to‑point, bus, star, ring, multi‑drop).

8.2 Evaluate Electrical Requirements

• Characteristic impedance, capacitance and attenuation limits.
• Signal type (differential vs. single‑ended) and acceptable noise margin.
• Rated voltage and dielectric strength based on system design.

8.3 Consider Environmental Conditions

• Indoor vs. outdoor, fixed installation vs. flexible or drag‑chain.
• Exposure to oils, chemicals, moisture, UV radiation and heat.
• Required temperature range and expected service life.

8.4 Determine Shielding Strategy

• Overall shield only for moderate EMI levels.
• Individual pair shields for high‑precision analog or low‑level signals.
• Combination of foil and braid for very harsh EMC environments.
• Grounding and bonding concept of the installation (single‑point or multi‑point grounding).

8.5 Fire, Safety and Regulatory Requirements

• Need for LSZH or halogen‑free materials (e.g. tunnels, public buildings, rail, marine).
• Compliance with local building codes and fire classifications (e.g. CPR in the EU).
• Third‑party test reports and certificates from recognized labs.

8.6 Mechanical & Installation Parameters

• Minimum bending radius and torsion capability.
• Maximum pulling tension during installation.
• Overall cable diameter relative to connector and gland sizes.

8.7 Documentation and Life‑Cycle Support

• Availability of complete data sheets, drawing files and test reports.
• Clear part numbering system for reorder and spare parts management.
• Expected product availability over the life of the project.

9. Evaluating Shielded Communication Cable Manufacturers, Suppliers & Exporters

Global shielded communication cable sourcing strategies typically involve multiple manufacturers, distributors,

wholesalers and specialized exporters. While this guide does not recommend any specific brands, it outlines

neutral criteria to help buyers compare different suppliers on a consistent basis.

9.1 Production Capabilities

• Range of conductor sizes, pair counts and shield types produced in‑house.
• Ability to manufacture standard and custom shielded communication cables.
• Modern equipment for extrusion, cabling, shielding, jacketing and quality testing.

9.2 Quality Management

• Implementation of quality systems (e.g. ISO 9001) and continuous improvement programs.
• Traceability from raw materials to finished shielded cable batches.
• Routine electrical, mechanical and fire‑test procedures on production lots.

9.3 Compliance & Certification

• Availability of compliance documentation with IEC, EN, UL, CSA and other relevant standards.
• Third‑party certification for LSZH, flame retardancy and low‑smoke properties.
• Environmental declarations (RoHS, REACH, recycled content, etc.).

9.4 Technical Support & Engineering Services

• Application engineering support for selecting the optimal shielded communication cable.
• Ability to cross‑reference equivalent part numbers from other brands.
• Design and manufacture of project‑specific or customized cable constructions.

9.5 Logistics and Export Capability

• Stock levels for popular shielded communication cable types and sizes.
• Experience with international shipments, export documentation and custom clearance.
• Flexible packaging options: drums, reels, coils, cut‑to‑length, labeled according to project requirements.

9.6 Cost, Lead Time & Total Value

• Balanced evaluation of cable price versus performance and lifetime cost.
• Standard lead times and ability to support urgent deliveries.
• Volume discounts and framework agreements for long‑term supply.

10. Installation Best Practices for Shielded Communication Cable

Even the highest‑quality shielded communication cable from leading manufacturers will underperform if installed

incorrectly. The following best practices help maintain EMC and signal integrity.

10.1 Proper Shield Termination

• Use appropriate shield clamps, EMC glands or connectors for 360‑degree shield bonding.
• Keep pigtail lengths as short as possible if 360‑degree termination is not feasible.
• Follow system manufacturer recommendations for single‑end or double‑end grounding.

10.2 Segregation from Power Cables

• Maintain physical separation between shielded communication cable and power circuits.
• Use dedicated cable trays or conduits for signal vs. power where possible.
• Cross high‑voltage cables at right angles if crossing is unavoidable.

10.3 Bend Radius and Pulling Tension

• Respect the minimum bending radius specified by the manufacturer (typically 7–15 × outer diameter).
• Avoid kinks and sharp bends that could damage insulation or shield coverage.
• Control pulling tension during installation, especially for long runs and multi‑core cables.

10.4 Environmental Protection

• Use appropriate sealing methods in outdoor junction boxes and cabinets.
• Protect exposed cables against mechanical damage and UV radiation.
• Ensure strain relief is applied to prevent stress on terminations.

11. Frequently Asked Questions About Shielded Communication Cable

11.1 When is shielded communication cable necessary?

Shielded communication cable is essential when communication links operate close to sources of EMI/RFI, such as

variable‑speed drives, high‑power motors, welding equipment, switch‑mode power supplies or radio transmitters.

It is also recommended for long cable runs, high‑speed digital protocols, precision analog measurements and

safety‑critical control systems.

11.2 What is the difference between overall shield and individual pair shield?

An overall shield surrounds all pairs and conductors, providing generalized protection against

external interference. Individual pair shields surround each pair separately and are used when

sensitive analog or digital signals must be protected from both external noise and crosstalk from adjacent pairs.

Many high‑end instrumentation and communication cables combine pair shields with an overall shield.

11.3 Does shielded cable always improve performance?

Shielding usually improves noise immunity, but optimal performance depends on correct selection, grounding and

installation. In some low‑noise environments or very short distances, unshielded cables can be sufficient.

Over‑shielding can increase cost and cable stiffness without significant benefit if the EMC environment is benign.

11.4 How should the shield be grounded?

Grounding practices depend on the system and standard in use. Some systems specify grounding at one end only

to avoid ground loops, while others require multi‑point grounding for high‑frequency interference control.

System integrators should follow controller, device or protocol guidelines and coordinate with EMC specialists.

11.5 Can shielded communication cables be used outdoors?

Many shielded communication cable constructions are suitable for outdoor use when they have UV‑resistant jackets,

moisture protection and, if needed, armoring. Buyers should specify “outdoor‑rated” or “direct burial” designs

where applicable and confirm these ratings in the technical documentation and test reports.

12. Summary and Buyer’s Checklist

Shielded communication cable is a foundational component of reliable data, voice and control systems. With

increasing EMC challenges in industrial and commercial environments, shielded solutions help ensure signal

integrity, regulatory compliance and long‑term system stability.

When comparing offers from global shielded communication cable manufacturers, suppliers and exporters, buyers

can use the following checklist:

• Confirm protocol compatibility and required electrical parameters (impedance, capacitance, bandwidth).
• Select appropriate shield type (foil, braid, combination; overall and/or individual pairs).
• Match jacket and insulation materials to environmental, fire and safety requirements.
• Verify compliance with IEC, EN, ISO/IEC, UL/CSA and local building codes.
• Assess supplier quality systems, testing capabilities and certification portfolio.
• Evaluate mechanical properties such as bending radius, flexibility and installation constraints.
• Check documentation completeness and long‑term availability of selected part numbers.
• Consider not only purchase price but also total cost of ownership and risk reduction due to fewer failures.

A structured evaluation approach enables engineering teams, system integrators and procurement specialists to

identify the most suitable shielded communication cable solutions for their projects, regardless of region or

specific brand, and to work effectively with both local distributors and international exporters.
