This in‑depth guide explains what steel armored rubber sheathed high voltage cable is, how it is constructed,

typical technical specifications, international standards, and how to evaluate manufacturers, suppliers and exporters

without mentioning specific brands. It is designed as SEO‑friendly reference content for blogs, industry directories,

and product category pages.

1. What Is Steel Armored Rubber Sheathed High Voltage Cable?

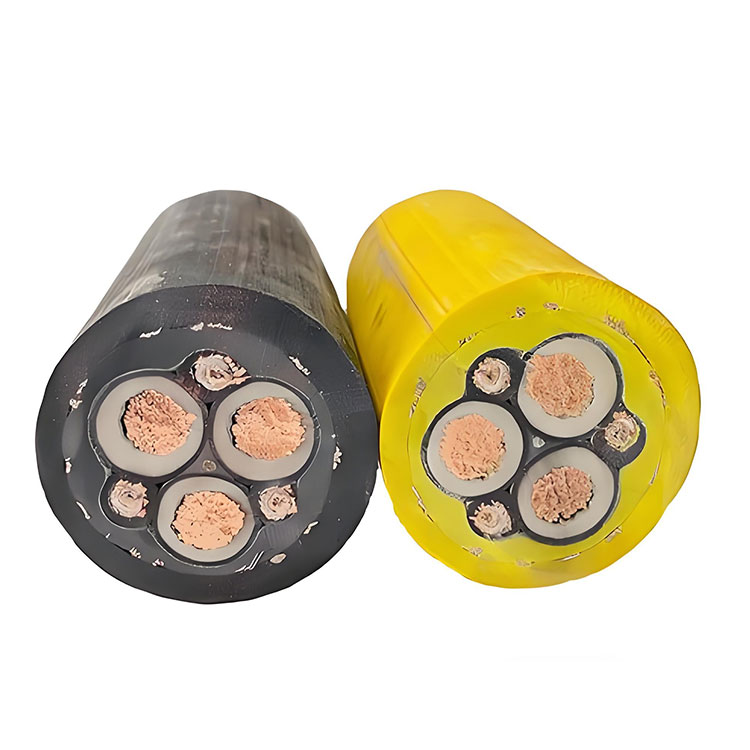

A steel armored rubber sheathed high voltage cable is a power transmission cable designed for

medium and high voltage applications, typically from 3.6/6 kV up to 26/35 kV or higher. It combines:

Copper or aluminum conductors for power transmission.

Rubber insulation (usually EPR or similar elastomer) for dielectric strength and flexibility.

Steel armor (steel wire or steel tape) for mechanical protection against impact, crushing and rodent damage.

Rubber outer sheath for environmental, chemical and UV resistance.

These cables are widely used where a robust and flexible high voltage cable is needed in tough

environments such as mining, tunneling, offshore platforms, industrial plants, mobile substations and temporary power systems.

2. Key Features and Advantages

Steel armored rubber sheathed high voltage cables offer a combination of electrical, mechanical and environmental

benefits that distinguish them from standard PVC or XLPE armored cables.

2.1 Main Advantages

High mechanical strength thanks to steel wire or steel tape armor.

Excellent flexibility compared with conventional XLPE/PVC armored cables.

Superior impact and crush resistance for harsh and mobile applications.

Good thermal performance over a wide temperature range, depending on rubber compound.

Excellent resistance to abrasion, ozone, moisture, oils, many chemicals and UV.

Enhanced safety with low smoke, halogen‑free and flame‑retardant sheath options.

Stable dielectric properties of rubber insulation under dynamic bending and vibration.

Suitable for indoor and outdoor use including wet, submerged and underground installations
(depending on design).

2.2 Typical Application Scenarios

A steel armored rubber sheathed high voltage cable is typically selected for:

Underground power transmission and distribution in industrial sites.

Mining and tunneling equipment, conveyors and mobile substations.

Port cranes, shipyards, offshore and marine environments.

Heavy‑duty temporary power at construction sites and infrastructure projects.

Renewable energy installations such as wind farms and solar plants (HV connection sections).

Harsh climatic areas with extreme temperatures, UV exposure and mechanical stress.

3. Basic Construction of Steel Armored Rubber Sheathed High Voltage Cable

While designs vary by standard and manufacturer, most steel armored rubber sheathed high voltage cables share a

similar layered structure.

3.1 Typical Layer Structure

Layer	Description	Main Function
Conductor	Annealed copper or aluminum, class 2 (stranded) or class 5 (flexible) as per IEC/EN standards.	Carry electrical current efficiently with low resistance.
Conductor Screen	Semiconducting compound extruded over conductor.	Even out electric field, minimize stress points.
Rubber Insulation	EPR, HEPR, or other high‑grade rubber insulation.	Provide dielectric strength and thermal performance.
Insulation Screen	Semiconducting layer over insulation, possibly with metallic screen.	Control electric field and facilitate grounding.
Metallic Screen	Copper tape or wires surrounding each core or the core assembly.	Carry fault currents, ensure shielding and bonding.
Filler / Bedding	Rubber or non‑hygroscopic fillers plus inner bedding layer.	Provide round cable shape and cushion for armor.
Steel Armor	Galvanized steel wires (SWA) or steel tapes (STA) helically applied.	Mechanical protection against impact, rodent and crush.
Inner Sheath (if any)	Rubber-based compound formed over core assembly before armor.	Separate insulated cores from armor and improve adhesion.
Outer Rubber Sheath	Heavy‑duty rubber sheath, possibly halogen‑free and flame‑retardant.	Environmental protection, chemical resistance and identification.

3.2 Steel Armor Types

Armor Type	Abbreviation	Characteristics	Typical Use
Steel Wire Armor	SWA	Round galvanized steel wires offering high tensile and impact strength, good flexibility.	Most common for single‑core and multi‑core HV rubber cables in industrial and mining sectors.
Steel Tape Armor	STA	Helically applied steel tapes providing excellent radial crush resistance.	Suitable where crushing load is dominant, often in fixed underground installations.
Double Steel Wire Armor	DSWA	Two layers of steel wire armor for extreme mechanical conditions.	Offshore, subsea or heavy mining cables requiring extra protection.

4. Materials Used in Armored Rubber High Voltage Cables

4.1 Conductor Materials

Copper conductor
- Higher conductivity and current carrying capacity.
- Better flexibility and thermal characteristics.
- Commonly used for mobile or dynamic high voltage applications.

Aluminum conductor
- Lighter weight and generally lower material cost.
- Often used in fixed installation where weight saving is critical.

4.2 Rubber Insulation Compounds

The insulating material in a steel armored rubber sheathed high voltage cable is usually one of the following:

EPR (Ethylene Propylene Rubber)
- Widely used for medium and high voltage power cables.
- Excellent dielectric properties and thermal aging resistance.
- Good flexibility across a wide temperature range.

HEPR (Hard Ethylene Propylene Rubber)
- Modified EPR, allowing higher operating temperature.
- Improved mechanical strength while maintaining elasticity.

4.3 Rubber Sheath Compounds

The outer sheath of a high voltage rubber cable is formulated to resist environmental influences. Typical options:

General purpose rubber sheath for indoor and light outdoor use.

Heavy‑duty rubber sheath for mining, marine and industrial applications.

Oil‑resistant rubber sheath for areas exposed to hydrocarbons.

Flame‑retardant and low smoke halogen‑free (LSHF) compounds for high safety environments.

UV and ozone resistant sheath for outdoor and rooftop installation.

5. Voltage Ratings and Typical Types

Steel armored rubber sheathed high voltage cables are produced in different voltage classes

according to IEC, EN, VDE or local standards. The notation often uses U₀/U (kV) where:

U₀ = rated voltage between conductor and earth.

U = rated voltage between conductors of a multi‑core cable.

Rated Voltage Class (kV)	Typical Designation	Typical Application Range
3.6/6	Medium voltage distribution for industrial plants and local networks.	Short to medium distance feeders, large motors and local substations.
6/10	Widely used MV rating for industrial networks.	Indoor/outdoor distribution, mining and mobile equipment feeds.
8.7/15	Common for secondary distribution and industrial power feeders.	Connections between substations, transformers and heavy loads.
12/20	Used in regional MV grids and high‑power industrial systems.	Outdoor underground cables for industrial campuses and utility networks.
18/30	Higher MV/low HV interconnections.	Longer distance feeders and higher capacity distribution circuits.
26/35	High voltage cable at distribution/transmission interface.	Primary distribution, wind farm export cables, and industrial plants with high demand.

6. Technical Specifications Overview

The following table summarizes typical technical parameters that manufacturers, suppliers and exporters of steel

armored rubber sheathed high voltage cables provide. Values are indicative only and may vary by design and standard.

Parameter	Typical Range / Description
Rated Voltage	3.6/6 kV to 26/35 kV (other ratings on request).
Conductor Size	25 mm² to 800 mm² (Cu or Al), single‑core or multi‑core.
Conductor Class	Class 2 (stranded) for fixed, Class 5 (flexible) for mobile use (per IEC 60228).
Number of Cores	Single‑core (1C), three‑core (3C), or custom core configurations for specific applications.
Insulation Material	EPR / HEPR high‑grade rubber insulation.
Sheath Material	Rubber, heavy‑duty rubber, oil‑resistant or halogen‑free rubber compounds.
Armor Type	Steel wire armor (SWA), steel tape armor (STA), or double armor for extreme conditions.
Max. Conductor Temperature	Commonly 90 °C (continuous), 130 °C (emergency overload), 250 °C (short‑circuit 5 s), depending on insulation.
Ambient Operating Temperature	From −25 °C or −40 °C up to +60 °C, depending on sheath material.
Minimum Bending Radius	Typically 6–15 × overall diameter for fixed installation; smaller for flexible designs (consult datasheets).
Rated Short‑Circuit Current	Calculated based on conductor size and material; typical 10–40 kA for 1 s.
Test Voltage	Commonly 2.5 × U₀ AC (5 min) or equivalent DC as per standard.
Standards	IEC 60502‑2, IEC 60228, IEC 60332 series, IEC 60840, EN and national standards.
Flame Performance	Flame‑retardant, fire‑resistant and low smoke halogen‑free options available.
Certification	IEC type test reports, routine test certificates, ISO 9001/14001/45001, etc.

7. Relevant Standards and Testing Requirements

Most reputable manufacturers, suppliers and exporters of steel armored rubber sheathed high voltage cables will

design, test and certify their products according to recognized international standards.

7.1 Key International Standards

IEC 60502‑2 – Power cables with extruded insulation and their accessories for rated voltages
from 6/10 kV up to 20.8/36 kV.

IEC 60228 – Conductors of insulated cables.

IEC 60840 – Power cables with extruded insulation and their accessories for rated voltages
above 30 kV (Um = 36 kV) up to 150 kV.

IEC 60332 series – Tests on electric cables under fire conditions (flame spread tests).

IEC 60502‑1 – Where relevant for lower voltage ranges or construction details.

EN / HD / VDE standards – Regional European specifications for medium and high voltage cables.

7.2 Typical Tests Performed

To ensure safety and performance, high voltage rubber armoured cables are subjected to:

Routine tests on each manufactured length:
- Conductor resistance check.
- Voltage withstand test.
- Insulation thickness and dimension verification.

Sample tests on production batches:
- Partial discharge measurement.
- Tensile and elongation tests on insulation and sheath.
- Aging tests at elevated temperature.
- Fire performance tests where applicable.

Type tests on representative cable designs:
- Long‑duration voltage tests.
- Thermal cycling tests.
- Short‑circuit tests.
- Mechanical impact and crushing tests.
- Water penetration and environmental tests.

8. Typical Applications of Steel Armored Rubber Sheathed High Voltage Cables

Because of the combination of steel armor and rubber sheath, these high voltage cables are especially suited to

harsh conditions where conventional plastic sheathed cables may not be durable enough.

8.1 Industrial and Utility Applications

HV feeders between transformers and switchgear in industrial plants.

Distribution networks in refineries, steelworks, cement plants and chemical complexes.

Power supply to large motors, compressors, pumps and drives.

8.2 Mining and Tunneling

Powering underground mining equipment, crushers and conveyors.

Temporary high voltage supplies in tunneling projects.

Areas with high risk of mechanical damage, moisture and abrasives.

8.3 Marine, Offshore and Port Infrastructure

Power connections on offshore oil and gas platforms.

Port cranes, ship loaders and heavy handling equipment.

Cables exposed to oil, seawater, UV and dynamic mechanical stress.

8.4 Renewable Energy and Temporary Installations

Connection cables between wind turbines and collection points.

Temporary high voltage power distribution at construction sites.

Mobile substations and emergency power systems.

9. Example Specification Table for Steel Armored Rubber Sheathed HV Cable

The table below is an illustrative example of technical data for a three‑core steel wire armored rubber sheathed

high voltage cable rated 8.7/15 kV. Real values vary by manufacturer and design.

Conductor Area (mm²)	Approx. Overall Diameter (mm)	Approx. Weight (kg/km)	Max. DC Resistance at 20 °C (Ω/km)	Continuous Current Rating in Air (A)	Continuous Current Rating in Ground (A)
35	~45	~2500	0.524	140–160	120–140
70	~50	~3100	0.268	200–230	180–200
120	~57	~3800	0.153	270–300	240–260
240	~70	~5200	0.076	390–430	350–380
400	~82	~6900	0.048	510–560	460–500
630	~96	~9300	0.030	650–710	600–650

These indicative values help engineers and buyers compare steel armored rubber sheathed high voltage cables with

other cable types when sizing for current, voltage drop and mechanical constraints.

10. Selection Guide: How to Choose Steel Armored Rubber Sheathed High Voltage Cable

10.1 Define Electrical Requirements

Rated system voltage – choose the correct U₀/U class (e.g. 8.7/15 kV).

Load current – calculate current required and select conductor size to avoid overheating.

Short‑circuit rating – ensure conductor cross‑section can withstand expected fault levels.

Voltage drop – particularly relevant for long cable runs.

10.2 Assess Installation Conditions

Installation method – buried directly, in ducts, on trays, in air or submerged.

Environment – dry, wet, chemical, marine, mining or industrial atmosphere.

Mechanical stress level – need for heavy steel wire armor or double armor.

Static or dynamic application – flexible design required for reeling or movement.

Ambient temperature – correction factors for current rating and sheath selection.

10.3 Safety and Compliance Factors

Fire performance – flame retardant, fire resistant, low smoke halogen free where required.

Standard compliance – cables designed to IEC 60502‑2, IEC 60228 and related standards.

Shielding and grounding – appropriate metallic screen and earthing for high voltage systems.

Markings and identification – clear core identification and durable sheath printing.

10.4 Mechanical Design Choices

Armor type – SWA vs STA depending on tensile vs crush loads.

Bending radius – match cable design to installation constraints.

Overall diameter and weight – handling, installation and support structure capacity.

Sheath robustness – thicker or special compound for abrasive or oil‑rich environments.

11. How to Evaluate High Voltage Cable Manufacturers, Suppliers and Exporters

When sourcing steel armored rubber sheathed high voltage cables, buyers often work with domestic manufacturers and

international suppliers or exporters. The following criteria are useful for evaluation without promoting any

particular company.

11.1 Technical Capability and Product Range

Availability of full range from 3.6/6 kV up to 26/35 kV or higher.

Experience with both copper and aluminum conductors.

Proven designs for single‑core and multi‑core steel armored rubber sheathed cables.

Capability to deliver customized designs (special sheath, armor, or screening systems).

11.2 Quality Control and Certification

Quality management systems such as ISO 9001.

Environmental and occupational health certifications such as ISO 14001 and ISO 45001.

Third‑party type test reports from accredited laboratories for representative cable designs.

Routine and sample test records available for traceability.

11.3 Compliance with Standards

Design and manufacture according to IEC 60502‑2, IEC 60228, IEC 60840 or equivalent national standards.

Fire and smoke performance tests where specified (e.g., IEC 60332 series, IEC 61034, IEC 60754).

Compliance with local grid codes and utility specifications if required.

11.4 Engineering Support and Documentation

Clear technical datasheets with current ratings, diameters, weights and installation guidance.

Support with cable sizing, system design and selection for specific applications.

Availability of drawings, laying instructions and jointing/termination recommendations.

11.5 Logistics, Packaging and After‑Sales Service

Appropriate cable drum design and protective packaging for long‑distance transport.

Experience with export documentation, customs and shipping for international projects.

After‑sales technical service, including failure analysis support when required.

12. Installation and Handling Considerations

Despite their robust construction, steel armored rubber sheathed high voltage cables must be installed following

best practices to ensure reliability and safety.

12.1 Handling and Storage

Store cable drums on firm, level ground to avoid deformation.

Protect cable ends from moisture and contamination using end caps.

Avoid dropping or rolling drums in a way that damages the armor or sheath.

12.2 Laying and Bending

Respect the specified minimum bending radius during installation.

Use rollers or suitable equipment to avoid excessive tensile stress.

Check for sharp edges in trenches or ducts that could damage the sheath.

12.3 Jointing and Termination

Use high quality accessories compatible with rubber insulated high voltage cables.

Follow approved procedures for stripping insulation and preparing stress‑relief cones.

Ensure correct connection of metallic screen and steel armor to earthing system.

12.4 Testing After Installation

Perform insulation resistance tests and high voltage withstand tests as specified.

Check phase identification and correct connection of cores.

Record baseline test data for future maintenance reference.

13. Summary of Benefits Compared with Other HV Cable Types

Compared with unarmored or plastic sheathed high voltage cables, a steel armored rubber sheathed high

voltage cable provides:

Improved mechanical protection via steel armor, allowing installation in rugged environments.

Enhanced flexibility from rubber insulation and sheath, beneficial for dynamic or mobile use.

Better resistance to oils, chemicals and abrasion in industrial and mining settings.

Wider operating temperature range depending on rubber compound selection.

Higher safety potential with low smoke, halogen‑free and flame‑retardant options.

For buyers, specifiers and engineers, these properties make steel armored rubber sheathed high voltage cables a

robust and versatile choice wherever standard XLPE/PVC cables may not provide sufficient durability or flexibility.

14. Frequently Asked Questions (FAQ)

14.1 What is the difference between steel armored rubber sheathed cable and standard PVC armored cable?

The main differences are in the insulating and sheathing materials. A steel armored rubber sheathed high voltage

cable uses rubber insulation and rubber sheath, while a standard PVC armored cable usually uses XLPE insulation and

PVC sheath. Rubber provides better flexibility and often superior mechanical and environmental resistance, while

PVC/XLPE designs may be more cost‑effective for static installations.

14.2 Can steel armored rubber sheathed high voltage cables be installed underground?

Yes, many designs are suitable for direct burial or duct installation. The steel armor provides mechanical

protection, and the rubber sheath resists moisture and chemicals. Installation conditions, soil thermal resistivity

and mechanical loads must be considered when selecting the specific cable design.

14.3 Are these cables suitable for movable equipment?

Flexible versions with class 5 copper conductors and specially formulated rubber sheaths can be used for movable or

reeling high voltage applications, such as mining machines or cranes. When choosing such cables, pay close attention

to minimum bending radius and dynamic fatigue performance.

14.4 What armor type should be selected?

Steel wire armor (SWA) is often preferred for general industrial use where both impact resistance and flexibility

are important. Steel tape armor (STA) is selected where radial crush resistance is a priority and the cable is

mostly static. For very severe conditions, double steel wire armor may be considered.

14.5 How to ensure compatibility with existing high voltage systems?

Verify that the selected steel armored rubber sheathed high voltage cable meets the system voltage class, short‑circuit

levels, earthing arrangement and insulation coordination of the existing network. It is recommended to follow

relevant installation standards and consult system design guides when integrating new cables into established

high voltage systems.

新闻中心
